Up2Stream Plate Amp 2.1 - Multiroom Wireless 2.1 Plate Amp

Sale price$99.00

  • RJ45 wired network and WiFi, Airplay, Spotify Connect, Bluetooth 5.0, DLNA, UPnP wireless connectivity support.
  • Super easy to install with plate amp, build your wireless boombox without complicated skills.
  • Maximum 50W x 2 +100W powerful output for your 2.1 projects and audio system.
  • Decoding up to 192khz/24bits, support FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format.
  • Support Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio and more.
  • Sync audio or play different songs at the same time with multiroom streaming.
  • Convenient, full wireless control by FREE iOS & Android 4STREAM app.
In stock
Support Together

We will donate $1 USD dollar of your every order to help the refugees in Turkey-Syria earthquake. Thank you for doing charity with us!

✔Fast & Free Shipping
✔We pay sales tax, if applicable
✔FREE & Easy 30 Days Return
✔Solid 1 Year Warranty
✔Official Website Promise
✔Online Expert Support
✔Fast & 3D Secure Payments


2.1 plat amp review

Up2stream Plate AMP 2.1

Up2stream Plate Amp 2.1 is a versatile WiFi and Bluetooth 5.0 2.1 channel plate amplifier that empowers you to effortlessly create your own top-notch wireless streaming speakers. This all-in-one solution boasts a full range Class D plate 2.1 amplifier, delivering 50W for the left and right channels, along with an impressive 100W output for the subwoofer.

Equipped with various connectivity options, including a 3.5mm Aux input, optical input, and USB input for PC connection, the Up2Stream Plate AMP 2.1 ensures seamless integration with your audio devices. Fine-tune your sound experience using the intuitive volume, tone, and bass rotary knobs for precise adjustments.

Once connected to your home network, simply utilize our user-friendly 4Stream app. This powerful app enables you to effortlessly stream music from your mobile device, NAS, or popular online streaming services such as Spotify, Deezer, Tidal, Qobuz, and more.

With the ability to connect multiple devices, you can effortlessly create a multiroom audio system. Sync and enjoy the same music in every room or customize the experience by playing different tracks in different rooms.


Wireless Connectivity

Up2stream Plate AMP 2.1 supports WiFi and Bluetooth 5.0, allowing for easy streaming of music from various sources such as smart phones, tablet, laptop, and computer within your local network. Additionally, the device supports popular protocols such as Airplay, Spotify connect, DLNA, and UPnP, providing seamless wireless music streaming capabilities.

Wired Network

Up2Stream Plate AMP 2.1 features an RJ45 Ethernet port for a more stable network connection. This allows you to directly stream music from your smart devices without having to go through the WiFi setup process using the app. This feature makes it super easy to get started and enjoy your music quickly and effortlessly.

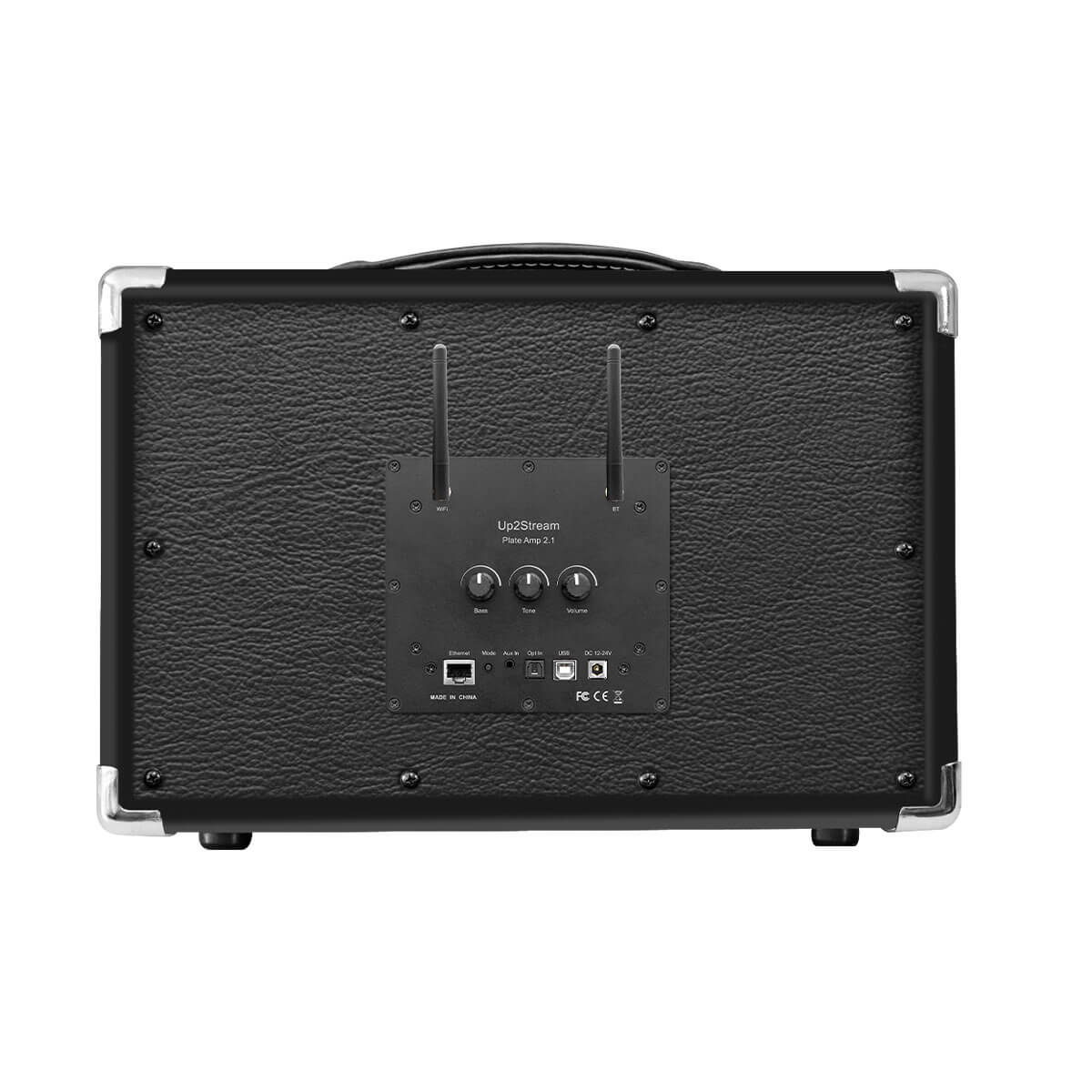

Easy To Install

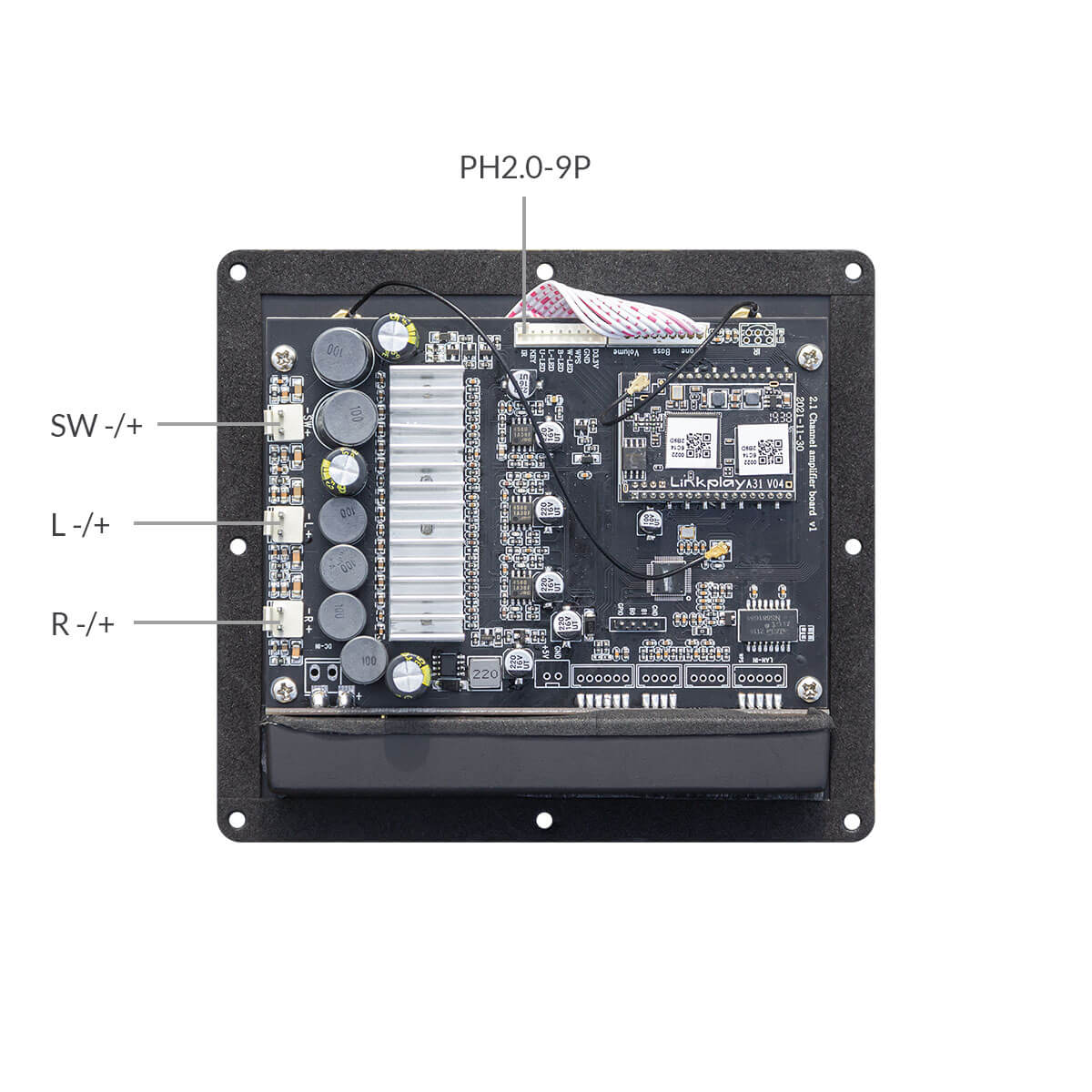

The Up2stream Plate Amp 2.1 is an amplifier board specifically designed for DIY enthusiasts. The board comes equipped with pre-wired connection ports, making it incredibly easy to install onto your speaker cabinet. All you need to do is connect it to your speaker, and you're good to go. This board is exceptionally user-friendly, saving you time and effort compared to other amplifier boards.

Powerful 2.1 Amplifier Board

With a peak power output of 50 watts per channel for two channels and an additional 100 watts, the Up2stream Plate AMP 2.1 has the ability to provide a impressive 2.1 home theater experience with powerful deep bass.

Plug and Play

With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a passive speaker and subwoofer. Unlike other audio boards, there's no need for soldering of pins before you can get started. This makes it incredibly easy and user-friendly for anyone to use.

Lossless Audio

The Up2stream Plate AMP 2.1 is designed to support a broad range of lossless audio formats, including FLAC, MP3, AAC, AAC+, ALAC, APE, and WAV. Furthermore, the board can decoding up to 192kHz/24bits, and providing high-quality audio output with a resolution of 44.1kHz/16bits CD quality.

The Up2stream Plate AMP 2.1 also delivers impressive sound with the TPA3116D2*2 amplifier chip used in its design. This chip provides powerful amplification to bring out the best in your audio.

Music Services Support

Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise, and more with future update.

Versatile Music Sources

The Up2stream Plate AMP 2.1 offers versatile streaming options, allowing you to easily stream music from various sources such as music services, NAS, phone storage, SD card, and other 3rd-party apps that support Airplay, DLNA, and UPnP protocols. This provides you with a wide range of choices when it comes to selecting your preferred music source.

Additionally, the device comes with Bluetooth 5.0, enabling you to stream audio from your smart devices seamlessly. This means you can enjoy your favorite music on the go, without the need for any additional cables or devices. With its multiple streaming options, the Up2stream Plate AMP 2.1 makes it easy to enjoy high-quality sound from a variety of sources.

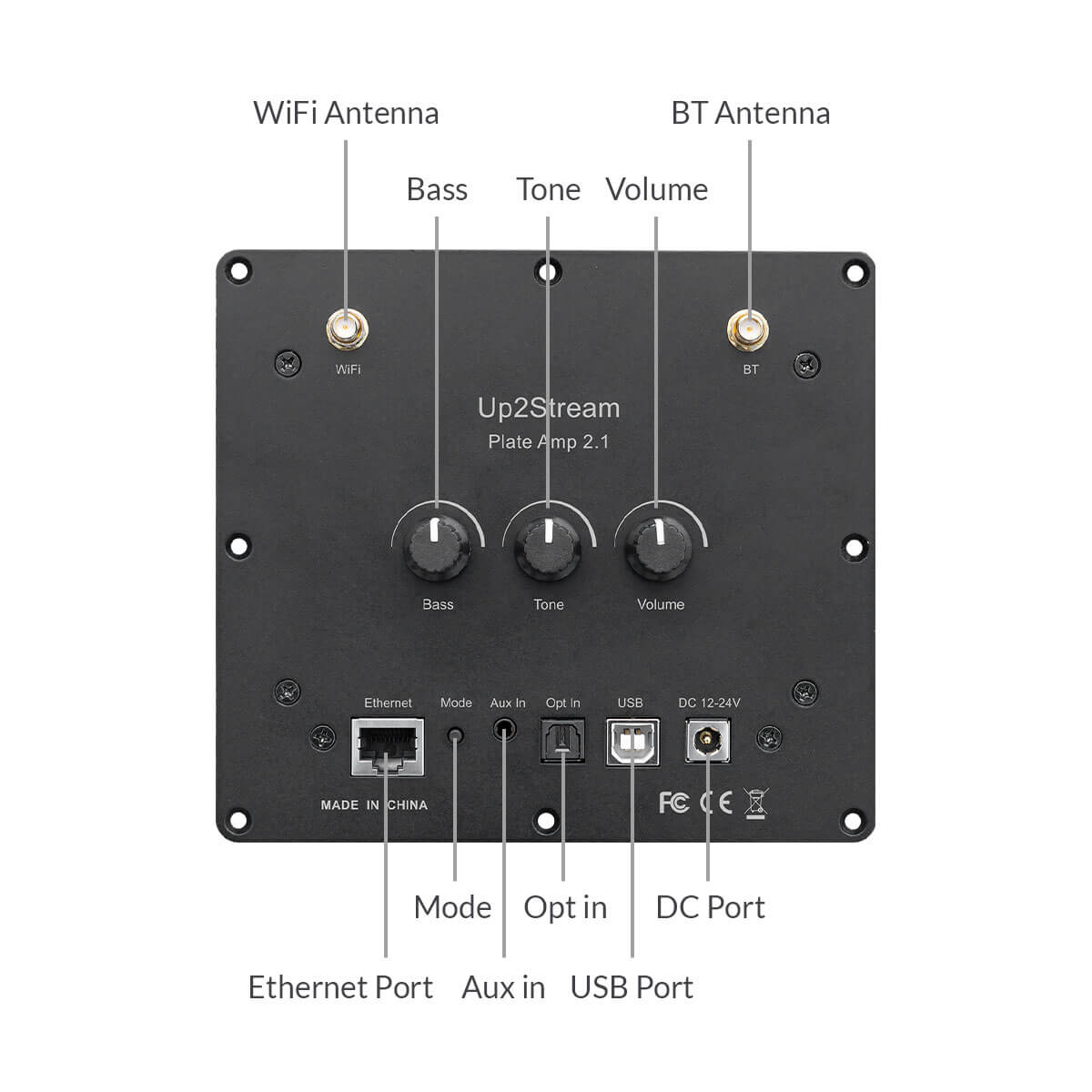

Multiple Interfaces

The Up2stream Plate AMP 2.1 comes with a range of ready-to-use interfaces, including a USB A audio input, optical input, speaker output and a plug for LED indicator, IR extension, and ADC-key. Which enables you to create a flexible system according to your specific needs. With these features, you can easily connect your audio devices and enjoy high-quality sound without any complicated setup.

Multiroom/ Multizone

If you have multiple Arylic streaming devices installed in different rooms, you can easily group them together into different groups and stream music to a master device, which will sync the same music to all other devices in that group.

Alternatively, you can also choose to play different songs at the same time throughout your house, providing a personalized listening experience for each room. With this feature, you can easily control and customize your music streaming experience based on your preferences and needs.


The 4STREAM APP is a powerful and convenient tool and free iOS& Android app that allows you to fully control your Arylic devices wirelessly. With this app, you can do music services playback, NAS/local files playback, preset content, mode swtich, Multiroom/Multizone control, EQ control, alarm clock, WiFi connection. With its user-friendly interface and comprehensive control features, the 4STREAM APP makes it easy to enjoy your music, your way.

Web Control

The Arylic streaming devices come with a unique feature that allows you to quickly access them by inputting the device's IP address into your browser.

This means you don't need to install any app or software to access the device's settings. Using this feature, you can easily set your preset content, EQ controls, playback options, and even update the device's firmware.

With this feature, you can quickly access and control your Arylic streaming devices, making it easy to enjoy high-quality audio with minimal setup time.

Enhanced Up2stream

The Up2stream Plate AMP 2.1 offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2stream button board, and Up2stream IR extension board. Each of these expansion boards provides unique features and capabilities that can be used to customize and improve the performance of your Up2stream Plate AMP 2.1 device. You can find all the boards and DIY Bluetooth speaker kit in Accessories.

USB Sound Card for PC

Once you connect the Up2stream Plate AMP 2.1 to your PC, it will be detected as a USB sound card. This allows you to stream audio from your PC directly to other devices connected to the Up2stream Plate AMP 2.1. This feature provides a convenient way to extend your audio playback capabilities beyond your PC. Support both Windows & Mac PC.

ACPWorkbench Tuning Tool

Our proprietary ACPWorkbench software provides a powerful tool to customize and optimize the DSP settings of each unit of the Arylic streaming devices. This software allows you to adjust a range of settings, including L/R balance, frequency of every channel, pregain, and more.

By fine-tuning these settings, you can achieve optimal audio performance and tailor the sound to your preferences.In addition to DSP settings customization, the ACPWorkbench software also supports local firmware updates, define pins and configure other settings.

Smart Home Assistant Integration

The Up2stream Plate AMP 2.1 offers a range of communication options, including HTTP API, UART, and TCP commands, providing flexibility for users to integrate the device into their existing smart home systems or to develop custom applications. Get API files below in the download portion and check the cases in our forum.

Easy WiFi SSID & BT Name Change

With the 4STREAM app, you can rename your Arylic streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.

Functional Knob Control

The Up2stream Plate AMP 2.1 features 3 rotary knobs that enable effortless adjustment of volume, treble, and bass. However, these knobs also facilitate adjustments to the crossover frequency and mode switching. In addition to controlling sound characteristics, the Up2stream Plate AMP 2.1 provides versatile functionality for a customized listening experience.

Optional Remote Control

The optional remote control is a useful addition to the Up2stream Plate AMP 2.1, providing an easy and convenient way to control your music playback from a distance. Like play/pause, deep bass, adjust volume, and quick switch preset content from a distance.

Whether you're listening to music in your living room or in another part of your home, the remote control makes it easy to adjust your settings and enjoy your music to the fullest. *Need to use with Up2stream IR extention board and Up2stream button board.


Newest Firmware Version



IEEE802.11 b/g/n 2.4G

5.0 SBC/AAC, 15M, BT Receiver

Wired Network:
Ethernet Single 10/100M RJ45

Power Input

12V-24V/DC in

Audio Input

3.5mm Line Input (1 Vrms)

USB A Input
Optical Input

Audio output

Speaker Out and Subwoofer Out

Other I/O Interface

LED pin connector
IR pin connector
Button pin connector

Amplifier Chip


Speaker Power

L&R 50W@4Ω + Sub 100W@2Ω BTL load at 24V
L&R 30W@8Ω + Sub 75W@4Ω BTL load at 24V
L&R 22W@4Ω + Sub 48W@4Ω BTL load at 19V
L&R 15W@8Ω + Sub 30W@4Ω BTL load at 15V

Speaker Impedance

4-8Ω (Stereo)/2-4Ω(Sub)

USB Host

For USB pen drive/stick, 1000 songs limited.


Which Audio Amplifier Board Are Made For You ?

①The optional remote control needs to be used with the IR sensor board.

②Up2stream Amp V4/Mono, Up2stream Amp2.1 need ACPWorkbench tuning tool to switch the spdif configuration from spdif in to spdif out.

③The IR Sensor board needs to be used with the button board.

Wireless Capability

WiFi, Airplay , Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA

WiFi, Airplay , Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA

WiFi, Airplay , Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA

Wired Network

Ethernet RJ45

Ethernet RJ45

Ethernet RJ45





Audio Channel




Music Service

Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM

Maximum Speaker Power(24V, 4ohm/Sub, 2ohm)

2 x 50W + 100W

2 x 50W + 100W

2 x 50W(Stereo)

Analog Audio Input

Aux In(3.5mm Jack)

Aux In(3.5mm Jack & Pin)

Aux In(3.5mm Jack & Pin)

Digital Audio Input

Optical In

Spdif In(Pin)

Spdif In(Pin)

Analog Audio Output

Subwoofer Out
Speaker Out

Speaker Out

Stereo-Aux Out(Pin)
Mono out(Pin)
Speaker Out

Digital Audio Output



I2S Out(Pin)

Amplifier Chip




Audio Format(Up To)




USB Playback








Web Control








Knob Control

Yes(Volume, Treble, Bass)

Yes(Volume, Treble, Bass)


Expansion Boards

Button Board
*③IR Sensor Board

Spdif In Board
*②Spdif Out Board
Button Board
IR Sensor Board

Spdif In Board
*②Spdif Out Board
Button Board
Volume Knob Board
IR Sensor Board


For Boombox

For Boombox

For Stereo Speaker, Bookshelf Speaker, Mono Speaker

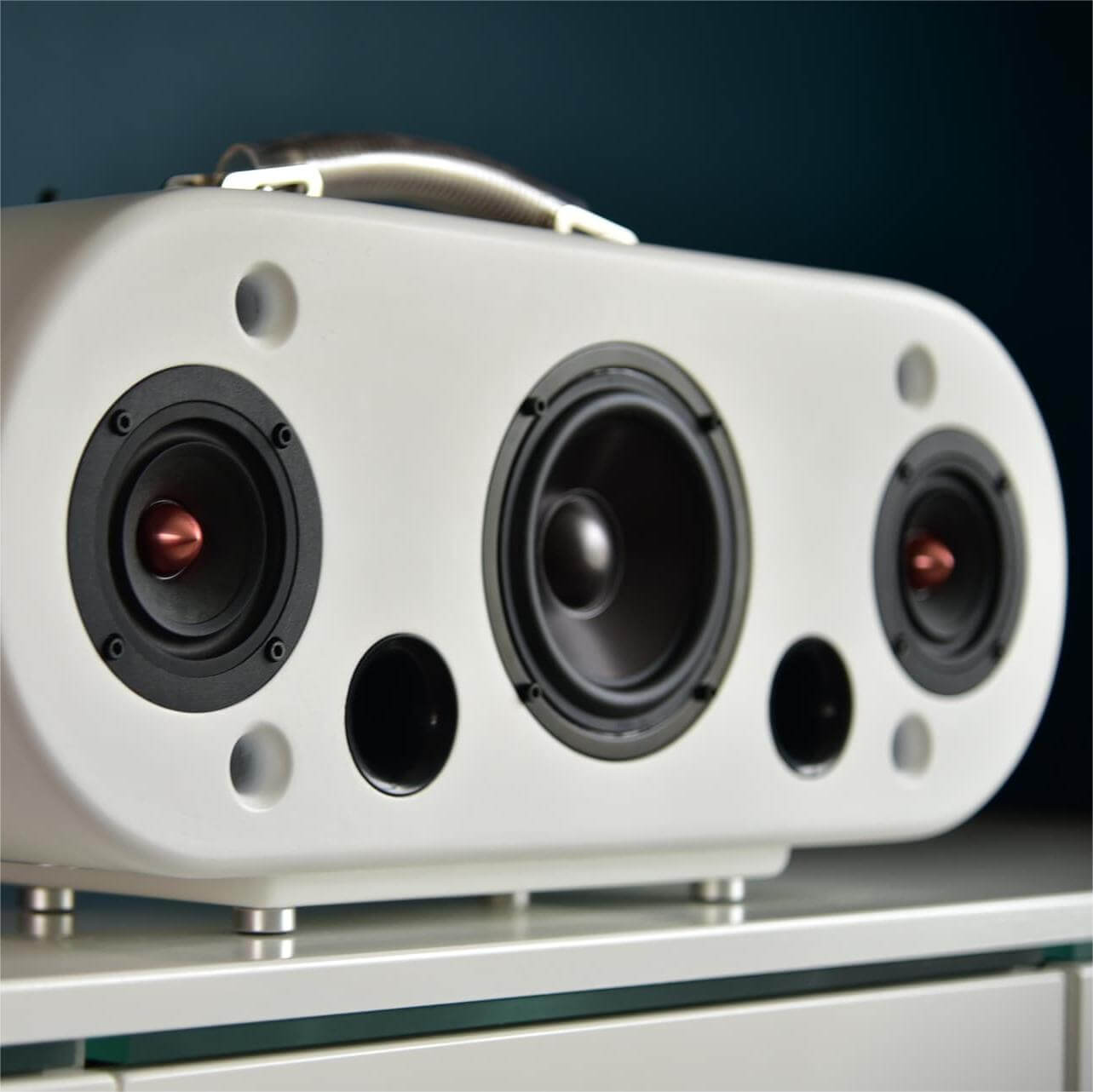

Build Your Wireless Projects

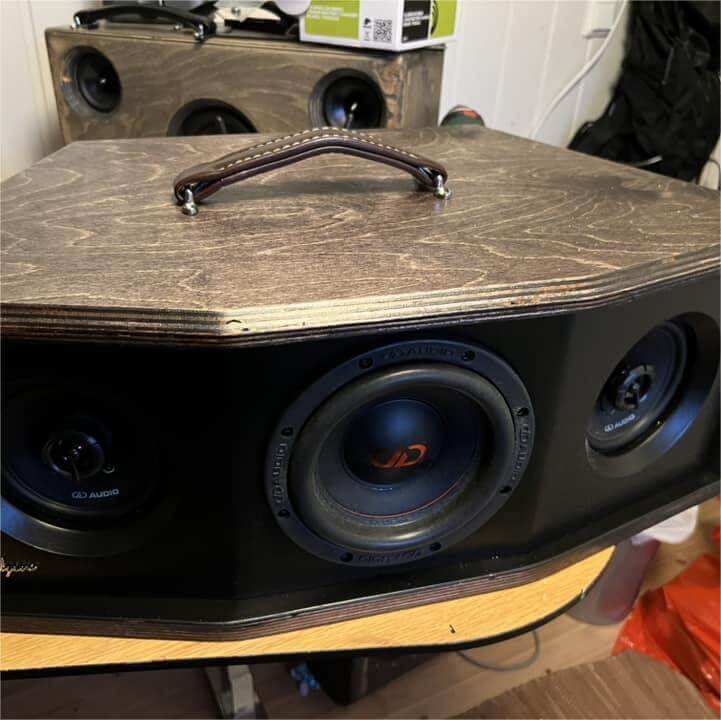

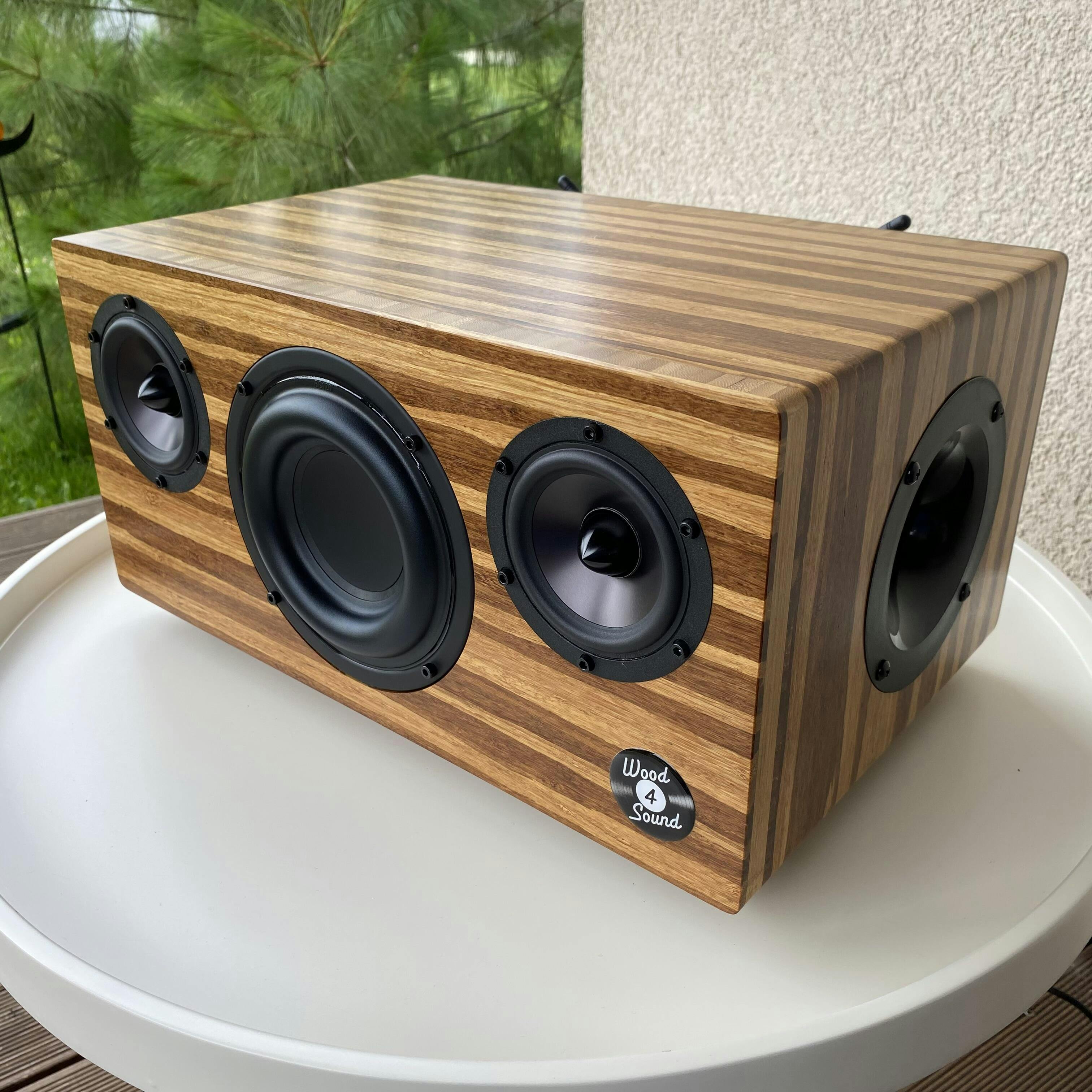

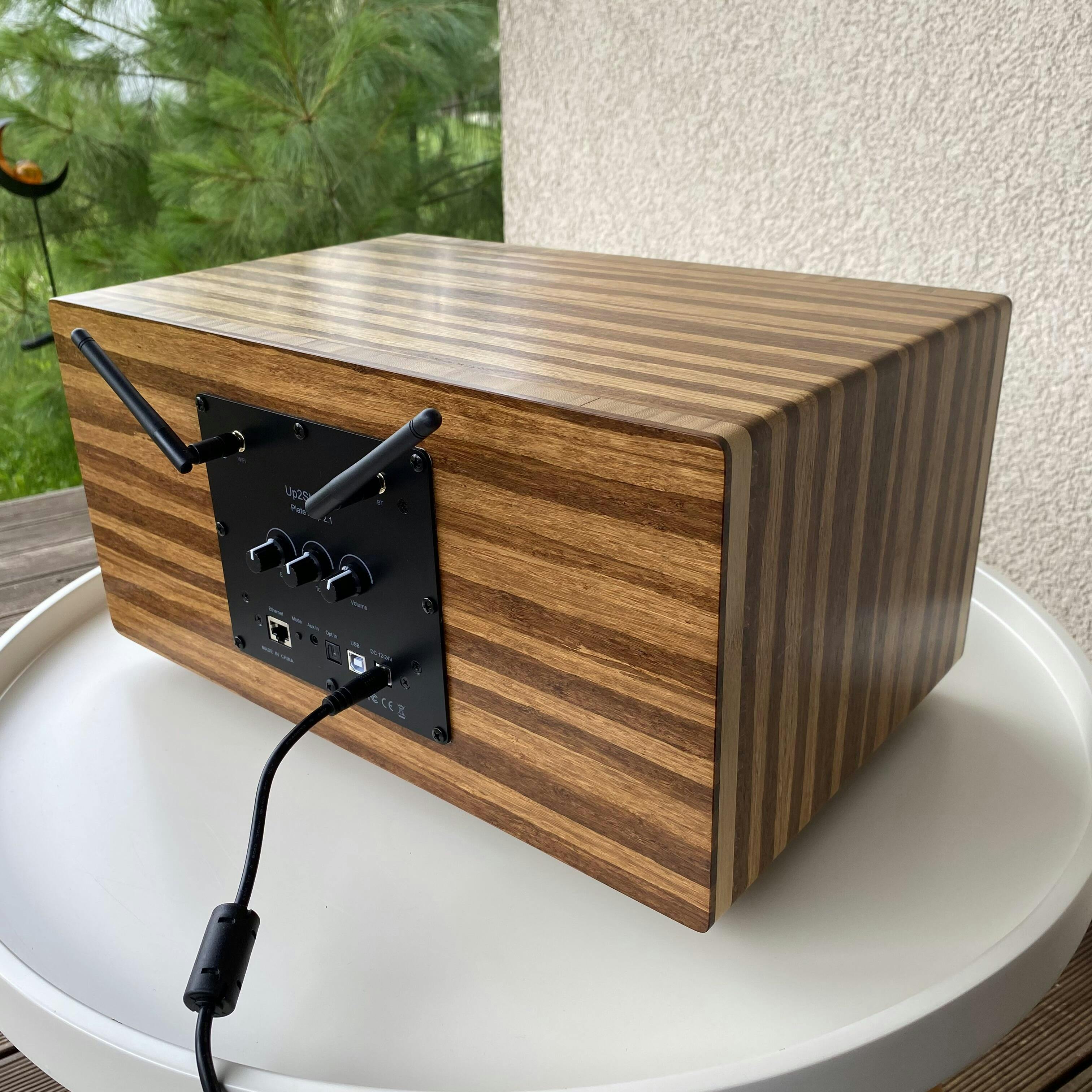

Powerful Wireless Boombox

Shared by Mundsen

diy boombox

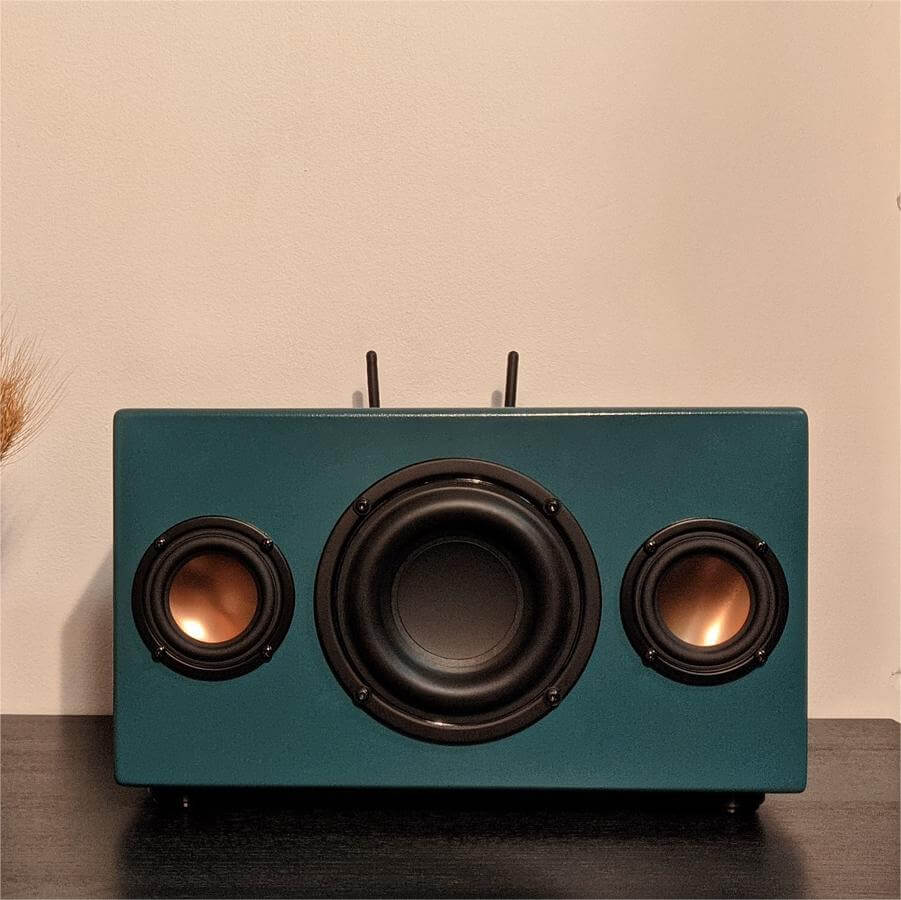

Build Wireless Active Speaker

Shared by DaBu

wireless boombox

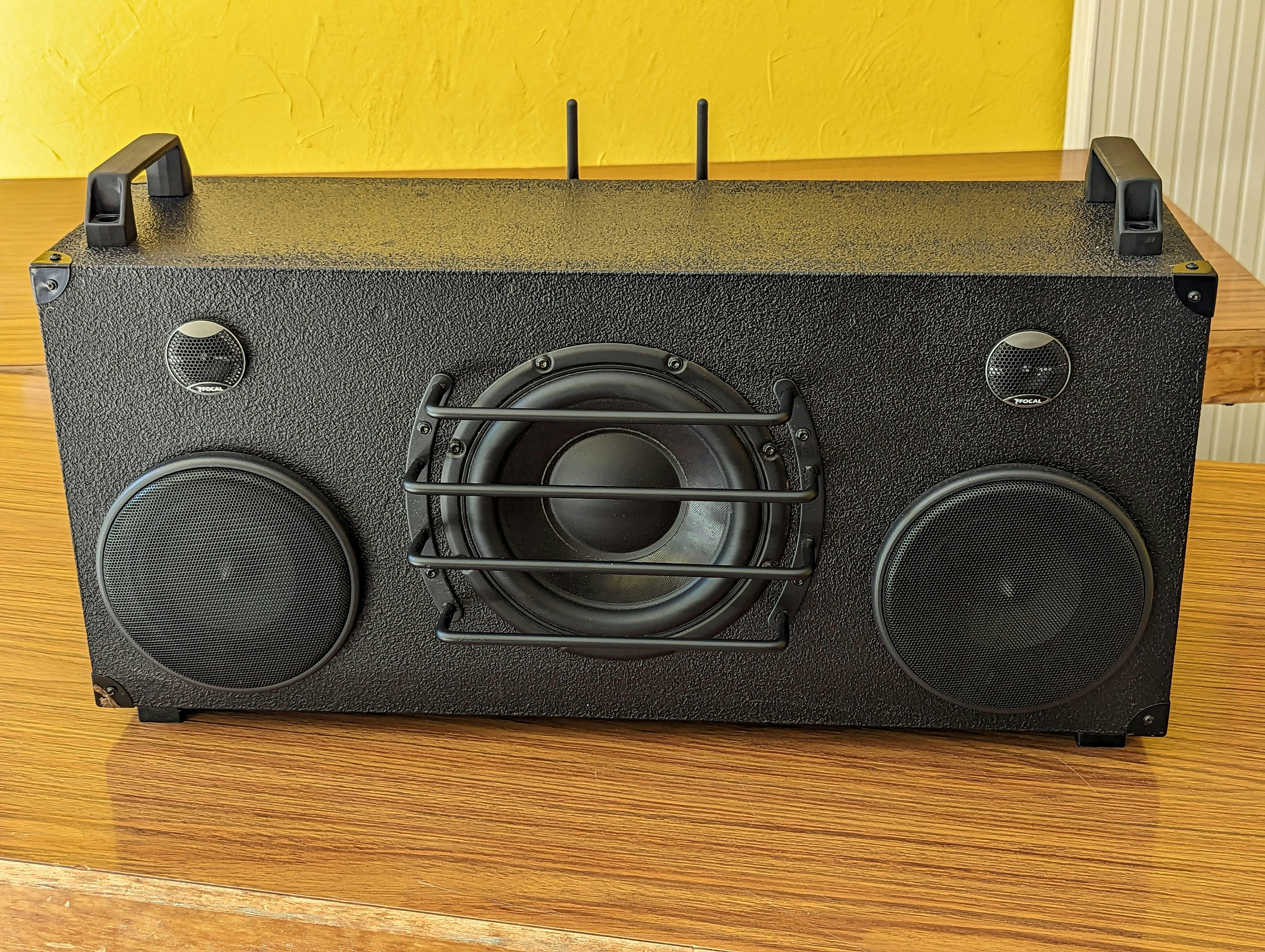

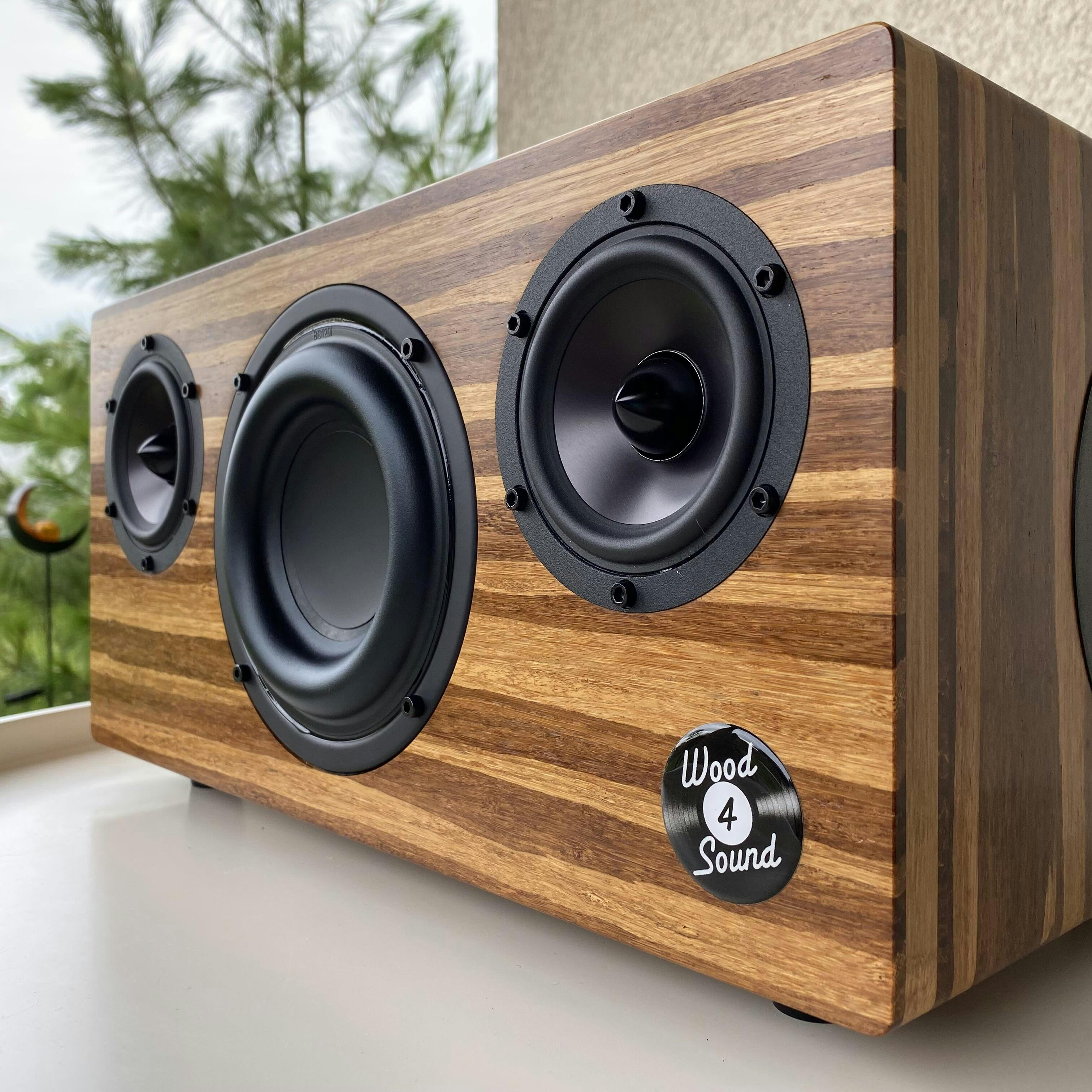

Customize Your Boombox

Shared by Paul Curtis

Compatible Accessories

ESS9023 DAC boardbutton board
Sale priceFrom $10.00
ACPWorkbenchDSP tool
24V adapter24V adapter EU
Sale priceFrom $5.00


Can't find your question? Contact us with the button below.

Our customer support is available Monday to Friday: 9am-6:00pm.(HKT)Average answer time: 24h
Contact Us

Customer Reviews

Based on 26 reviews
Great product with room for tiny improvements

The product delivers great sound, super connectivity and surprisingly much power. Would be great if there’s a power on/off button or standby after 1 hour option.

jörg fink

Hello, You have great products but I have a few suggestions: 1. When can I connect the display to other boards? 2. why are there no ID3 tags on the free internet channels? 3. After a reboot or start from standby, the last station should always start automatically I've asked this question before... and didn't get an answer... Maybe I'll get a positive answer now
Best regards
Joerg Fink

Giovanni Piemontese
Product very well engineered and realized

Only one issue at the moment: Button board don’t have any case…

Siegfried Greve
Best Service

Everything quickly and perfect delivered

Definitely wouldn't buy again

1. First you have to do the math to understand what they are advertising as output for this amp. They say 50w x 2 @ 4ohm + 100w x 1 @ 2ohm. This is 200w total MAX output (Not to be confused with RMS output). The largest power supply arylic sells doesn't even produce 100watts, so don't expect to get even half of the power output that arylic advertises with their own power supply. There is no mention of having to use a larger power supply to get their advertised power ratings anywhere on this website, by the way. Other companies are quite open about this, such as Aiyima or Fosi, which give you a detailed breakdown of how much power their amps will produce based on the voltage/amperage of the power supply. I know, more power isn't everything but Arylic is quite misleading with their advertising.
2. Customer support is pretty unhelpful for answering technical questions that they really should know. I'm not trying to do anything crazy and asked two pretty simple questions for my DIY bluetooth speaker build, but it took weeks to get any response and the response I finally got wasn't helpful at all.
3. The amp board is not sealed and audibly leaks air when the subwoofer is playing. So much for the time I spent tuning the box..
4. ACPworkbench is a really cool tool, but the instructions are garbage. I think I've figured it out enough to do what I need to, but some real instructions would have saved me loads of time.

one of the best all-in-one plate amps

Combine the TPA3116D2, 2.1 channels, and wifi/Ethernet streaming on a plate, it's a DIY dream, and perfect for a table-top all-in-one. I'm running a Dayton PS95 full-range, and a DCS165 sub. It could be a tad brighter, but that's a driver issue, which I can boost a bit in the Workbench app.

I bet a version using the TPA3255 chip would be killer.
