Up2Stream HD DAC - Airplay 2 High-Res Wireless aptx HD Audio Streaming Board(No Amp)
- AirPlay 2, multirooom streaming directly from your iOS system.
- Spotify Connect and Tidal Connect Support, stream directly from your Spotify and Tidal App.
- 192khz/24bits Hi-res music and FLAC / MP3 / AAC / AAC+ / ALAC / APE / WAV lossless audio format support.
- Stream HD music with Bluetooth 5.0 aptX HD and ESS 9038Q2M DAC.
- Plug and Play, quick connection, no pins soldering.
Buy 3 Units, Get 5% Off
Buy 4 Units, Get 8% Off
Buy 5 Units, Get 10% Off
Final price calculated at the checkout🛒
About Shipping
Shipping Fee:
Standard Shipping is $9.9.
Free Shipping Over $90 Whole Store.
Free Express Shipping Over $150 Whole Store.
Express Shipping may varies of different regions.
(Please check at the checkout)
Delivery Time:
Local Delivery From Local Warehouse - 2-7 Days
Standard Shipping - 7-25 Days
Express Shipping - 3-10 Days
Delivery time may varies of different regions
(Please check at the checkout)
Shipping From:
US warehouse support shipping to Canada & United States.
EU warehouse support shipping to Europe regions.
AU warehouse support shipping to Australia.
RU warehouse support shipping to Russia.
Asia warehouse support shipping to Global.
If you have other questions, contact us.
✔We pay sales tax, if applicable
✔FREE & Easy 30 Days Return
✔Solid 1 Year Warranty
✔Official Website Promise
✔Online Expert Support
✔Fast & 3D Secure Payments
A QUESTION? CONTACT OUR EXPERT
Up2stream HD DAC
The Up2Stream HD DAC is an advanced wireless audio streaming board that provides Airplay2, WiFi, Spotify Connect, Tidal Connect, Bluetooth 5.0 aptX HD, DLNA and UPnP connectivity. With this device, you can easily stream music from your smart devices, NAS, and various online streaming services such as Spotify, Apple music, Amazon music, Tidal, Deezer, and more.
The Up2Stream HD DAC is capable of streaming and outputting high-quality music in sample rates of up to 192kHz/24bits, ensuring an exceptional listening experience. Additionally, it comes with both analog and digital input and output, making it an ideal choice for building your own high-res wireless audio system.Which you can build AirPlay2 amplifier and streamer.
Features
Airplay 2
With support for Apple Airplay2, the Up2stream HD DAC allows for direct streaming and multiroom playback of music from your iOS devices.
Spotify Connect & Tidal Connect
With Spotify Connect and Tidal connect compatibility, you can stream music directly from Spotify or Tidal without using our 4Stream app.
192khz/24bits Hi-Res Audio
Up2stream HD DAC supports 1:1 high-fidelity lossless 192khz/24bits audio output. What's more, the high-performance ESS 9038Q2M DAC plays a big role in sound quality. Enjoy high quality sound from high performance hardware with your stereo system.
Stream with HD Music
Up2Stream HD DAC is able to stream with Qobuz HD and Tidal HiFi to give you the true high-resolution audio experience. More HD music will be updated and supported in the future. Along with this HD music, it also supports Spotify, Amazon Music, Deezer, Internet Radio, iHeartRadio, Napster, and more.
Wireless Connectivity
Perfect to add dual band WiFi, Airplay 2, Spotify Connect, Tidal Connect, Bluetooth 5.0 aptX HD, DLNA and UPnP wireless capability to your DIY audio projects. Build a wireless speaker, wireless streamer, or convert your traditional stereo system into an advanced wireless multiroom streaming system.
Wired Network
Up2Stream HD DAC features an RJ45 Ethernet port for a more stable network connection. This allows you to directly stream music from your smart devices without having to go through the WiFi setup process using the app. This feature makes it super easy to get started and enjoy your music quickly and effortlessly.
Plug and Play
With the ready-to-use interfaces, streaming music is as simple as plugging in the power and connecting to a powered speaker or an amplifier. Unlike other audio boards, there's no need for soldering of pins before you can get started. This makes it incredibly easy and user-friendly for anyone to use.
Music Services Support
Spotify, Apple Music, Amazon Music, Tidal, Deezer, Qobuz, TuneIn, Internet Radio, Napster, iHeart Radio, Radio Paradise, and more with future update.

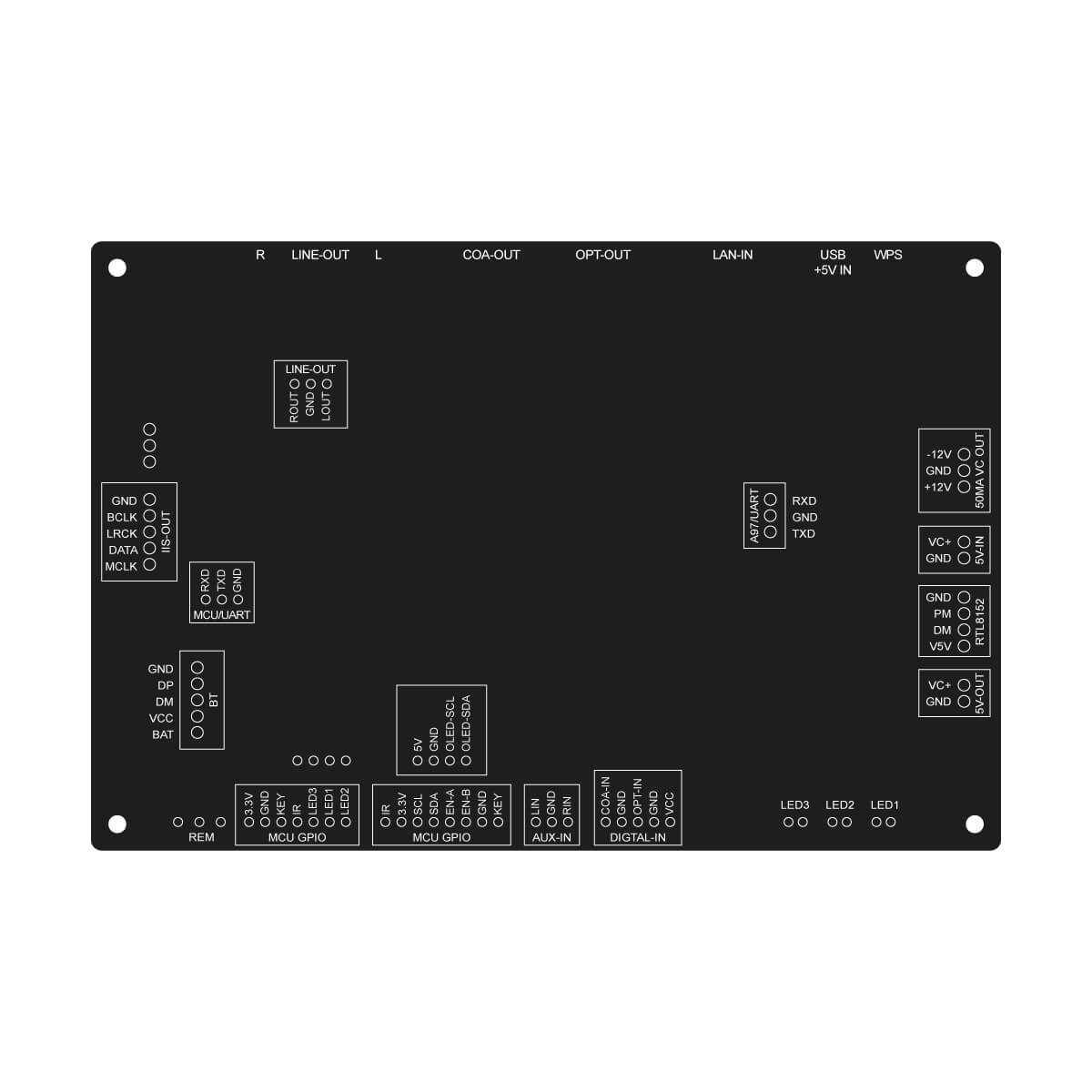

Multiple Interfaces
The Up2stream HD DAC comes with a range of ready-to-use interfaces, including a RCA out, coaxial out, optical out, and a plug for digital input, AUX input, AUX output, Display panel input and MCU GPIO input. Which enables you to create a flexible system according to your specific needs. With these features, you can easily connect your audio devices and enjoy high-quality sound without any complicated setup.
Versatile Music Sources
The Up2stream HD DAC offers versatile streaming options, allowing you to easily stream music from various sources such as music services, NAS, phone storage, SD card, and other 3rd-party apps that support Airplay2, DLNA, and UPnP protocols. This provides you with a wide range of choices when it comes to selecting your preferred music source. Additionally, the device comes with Bluetooth 5.0 aptX HD, enabling you to stream audio from your smart devices seamlessly. This means you can enjoy your favorite music on the go, without the need for any additional cables or devices. With its multiple streaming options, the Up2stream HD DAC makes it easy to enjoy high-quality sound from a variety of sources.
Multiroom/ Multizone
If you have multiple Arylic streaming devices installed in different rooms, you can easily group them together into different groups and stream music to a master device, which will sync the same music to all other devices in that group. Alternatively, you can also choose to play different songs at the same time throughout your house, providing a personalized listening experience for each room. With this feature, you can easily control and customize your music streaming experience based on your preferences and needs.
4STREAM APP
The 4STREAM APP is a powerful and convenient tool and free iOS& Android app that allows you to fully control your Arylic devices wirelessly. With this app, you can do music services playback, NAS/local files playback, preset content, mode swtich, Multiroom/Multizone control, EQ control, alarm clock, WiFi connection. With its user-friendly interface and comprehensive control features, the 4STREAM APP makes it easy to enjoy your music, your way.
Enhanced Up2stream
The Up2stream HD DAC offers several optional expansion boards that can be used to enhance its functionality and performance. These expansion boards include the Up2stream Display Board, and other boards your need to wiring the correspond pins yourself: Up2stream SPDIF in board, Up2stream button board, Up2stream IR extension board, and Up2stream volume knob board. Each of these expansion boards provides unique features and capabilities that can be used to customize and improve the performance of your Up2stream HD DAC device. You can find all the boards in Accessories.
Easy WiFi SSID & BT Name Change
With the 4STREAM app, you can rename your Arylic streamimg device's WiFi SSID and Bluetooth name. The changes will stay even after a factory reset, untill you change it again.
Optional Remote Control
the optional remote control is a useful addition to the Up2stream HD DAC, providing an easy and convenient way to control your music playback from a distance. Like play/pause, deep bass, adjust volume, and quick switch preset content from a distance.
Whether you're listening to music in your living room or in another part of your home, the remote control makes it easy to adjust your settings and enjoy your music to the fullest.
Specification
4.6.415145.35
IEEE 802.11 b/g/n 2.4G & 5G
Ethernet Single 10/100M RJ45
Bluetooth 5.0 Qualcomm aptX-HD/SBC/AAC, 15M, BT Receiver
Input:
5V-2A 2 pin connector
5V-2A Type-C input
Output:
5V 2 pin connector
50MA VC Out 2 pin connector: : +/-12V balance output.
Analog:
4 pin connector AUX Input (1.3 Vrms)
Digital:
5 pin connector digital Input
Analog:
RCA Out (1.3 Vrms)
4 pin connector AUX Output (1.3 Vrms)
DAC: 9038Q2M
Digital:
I2S Out,
SPDIF Out (Optical, Coaxial 1:1 Upto 24bit / 192kHz)
LED pin connector
IR pin connector
Button pin connector
Display panel pin connector
Rotary encoder pin connector
20Hz to 20kHz
110dB/0.0003
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Decoding up to 192khz/24bits
Output 1:1 up to 24bit/192kHz
AirPlay2, DLNA, UPnP, Spotify Connect, Tidal Connect, Qplay
Support NAS with DLNA support
110x74mm
300g
0~40℃
3Pin AUX Cable
User Manual
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode);
Disconnect current connected Bluetooth device (Bluetooth mode)
Short press three times: Restore the factory settings
Device off:
Short press: Switch on
⚪White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Solid- WiFi is connected
🔵Blue-Bluetooth mode:
Flashing slow- waiting for Bluetooth connection
Solid- Bluetooth is connected
🟢Green-Line in mode
🟣Purple-Spdif in mode
Compare
Which Music Streamer Board Are Made For You ?
① Up2stream Mini & Up2stream Pro need ACPWorkbench tuning tool to switch the spdif configuration from spdif out to spdif in.
② If you want to use the expansion boards(*② in the table) on Up2stream HD DAC, you need to wire to correspond pins by yourself.
WiFi, Airplay 1, Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA
WiFi, Airplay 1, Spotify Connect, Qplay, Bluetooth 5.0, UPnP, DLNA
WiFi, Airplay 2, Spotify Connect, Tidal Connect, Qplay, aptX HD Bluetooth 5.0, UPnP, DLNA
None
Ethernet RJ45
Ethernet RJ45
Yes
Yes
Yes
Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM
Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, Napster, Internet Radio, iHeartRadio, QQ Music, QQFM
Spotify, Amazon Music, Deezer, TuneIn,
Tidal (HiFi), Qobuz (HD), Napster, Internet Radio, iHeartRadio, QQ Music, QQFM
5V/1A Micro USB
5V/1A Micro USB
5V/2A Type-C
None
Aux In(3.5mm Jack & Pin)
Aux In (Pin)
USB DAC
USB DAC
Spdif In (Pin)
Aux Out (3.5mm Jack & Pin)
DAC: Integrated
Aux Out (3.5mm Jack & Pin)
DAC: Integrated
RCA (RCA & Pin)
DAC: ES9038Q2M
I2S Out(Pin)
Spdif Out(Pin)
I2S Out(Pin)
Spdif Out(Pin)
I2S Out(Pin)
Spdif Out(Opt & Coax)
44.1khz/16bits(CD)
44.1khz/16bits(CD)
192khz/24bits (Hi-Res)
None
Yes
Yes
Supported
Supported
None
Yes
Yes
None
Optional
Optional
Optional
*①Spdif In Board
Spdif Out Board
DAC Board
Button Board
Volume Knob Board
IR Sensor Board
*①Spdif In Board
Spdif Out Board
DAC Board
Button Board
Volume Knob Board
IR Sensor Board
*②Spdif In Board
*②Spdif Out Board
*②Button Board
*②Volume Knob Board
*②IR Sensor Board
Display Panel
For single wireless projects
For Multiroom Projects
For Airplay 2 Projects or better sound performance.

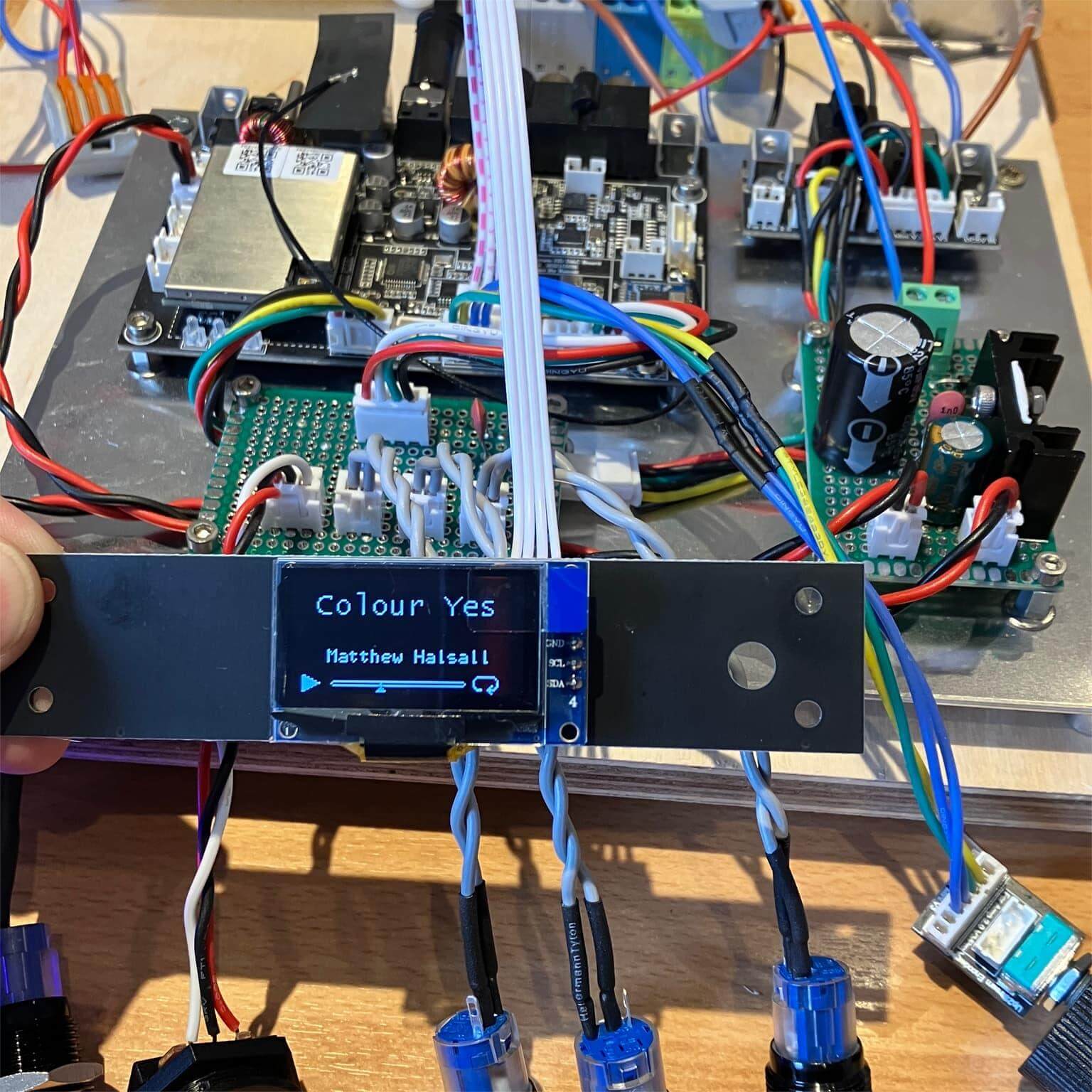

Build Your Airplay 2 Projects
Upgrade Your Old HiFi
Shared by Maurizio Cerpelloni
Airplay 2 Streamer
Shared by A.
Build Your Own Airplay 2 Project
Shared by MartinD.
Customize Your Airplay 2 Amplifier
Shared by Froggy75
FAQ
Can't find your question? Contact us with the button below.
Does Up2stream HD DAC support ACPWorkbench tuning tool?
Sorry, due to different hardware design, Up2stream HD DAC is not support ACPWorkbench tuning tool.
Can I use web control with Up2stream HD DAC ?
Sorry, due to different hardware design, Up2stream HD DAC is not support web control currently.
Can I use Up2stream HD DAC as a USB sound card for PC?
No, the type C USB port on Up2stream HD DAC only for power supply.
Not available to do the data transmission.
