Up2stream Display Board SSD1306 OLED Display Module

Sale price$25.00

In stock
✔Fast & Free Shipping
✔We pay sales tax, if applicable
✔FREE & Easy 30 Days Return
✔Solid 1 Year Warranty
✔Official Website Promise
✔Online Expert Support
✔Fast & 3D Secure Payments
Payment method icon

A QUESTION? CONTACT OUR EXPERT

1.3 inch OLED

Up2stream Display Board

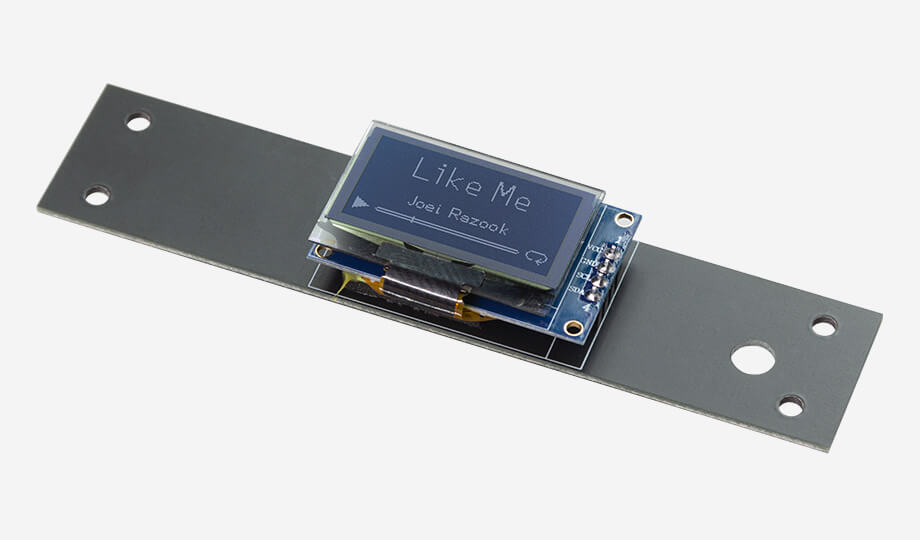

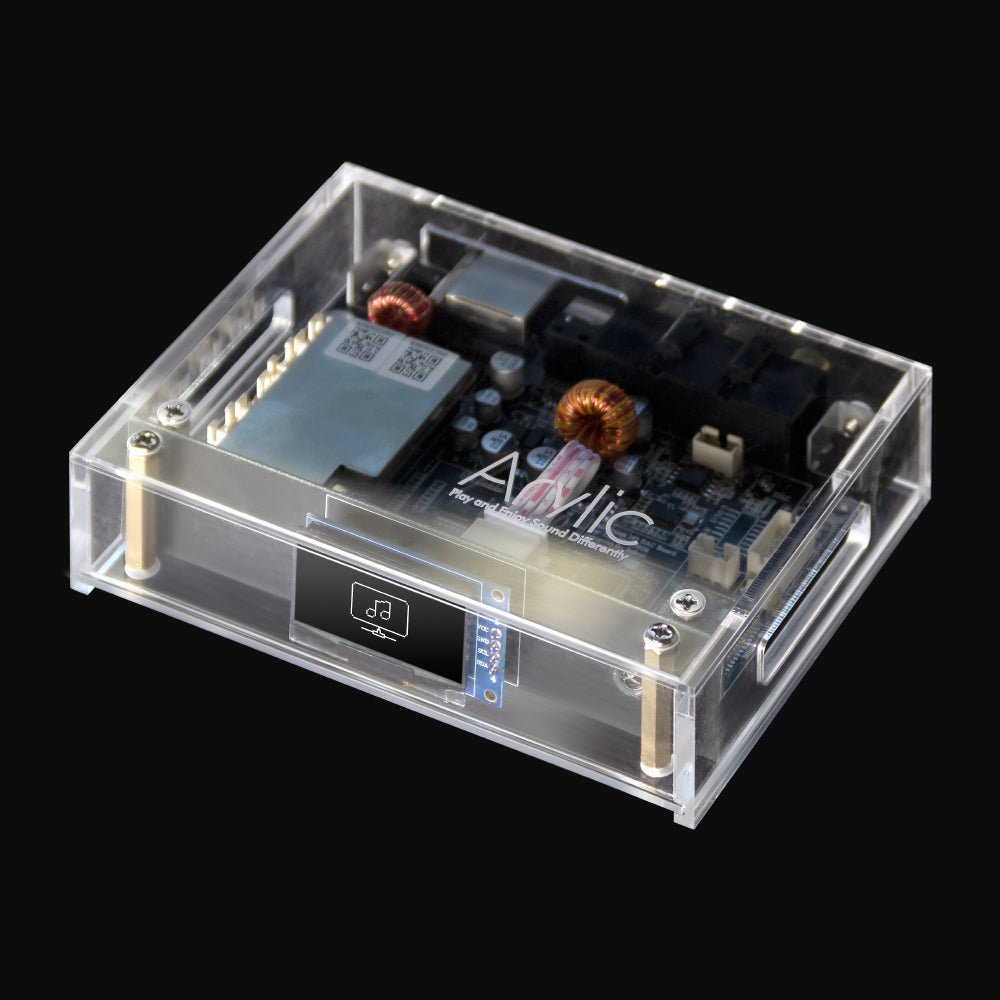

Up2stream Display Board is a 1.3inch(128 x 64) OLED display board with an SSD1306 driver for the Up2stream HD DAC wireless audio streaming board. A DIY monitor allows you to add display features to the Up2stream HD DAC wireless audio streaming board.

OLED board

Friendly User Interface

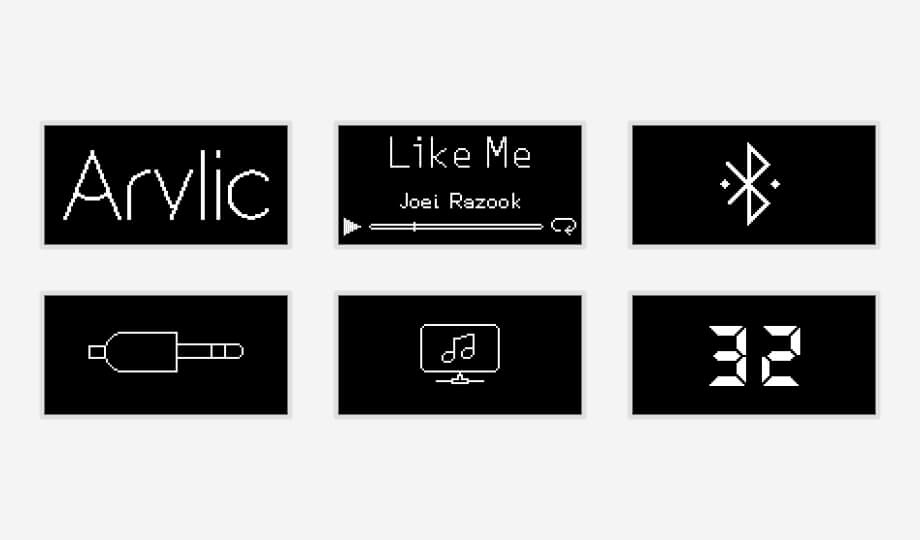

Up2stream Display Board display the info about device status, connection status, mode, songs, volume and more.

Specification

TYPE

OLED

OPERATING VOLTAGE

5 V

Dimention

1.3iches, 128(L)x64(H)mm

DISPLAY COLOR

White

DRIVER CHIP

SSD1306

OPERATING TEMPERATURE

-40~70 oC

INTERFACES

I2C

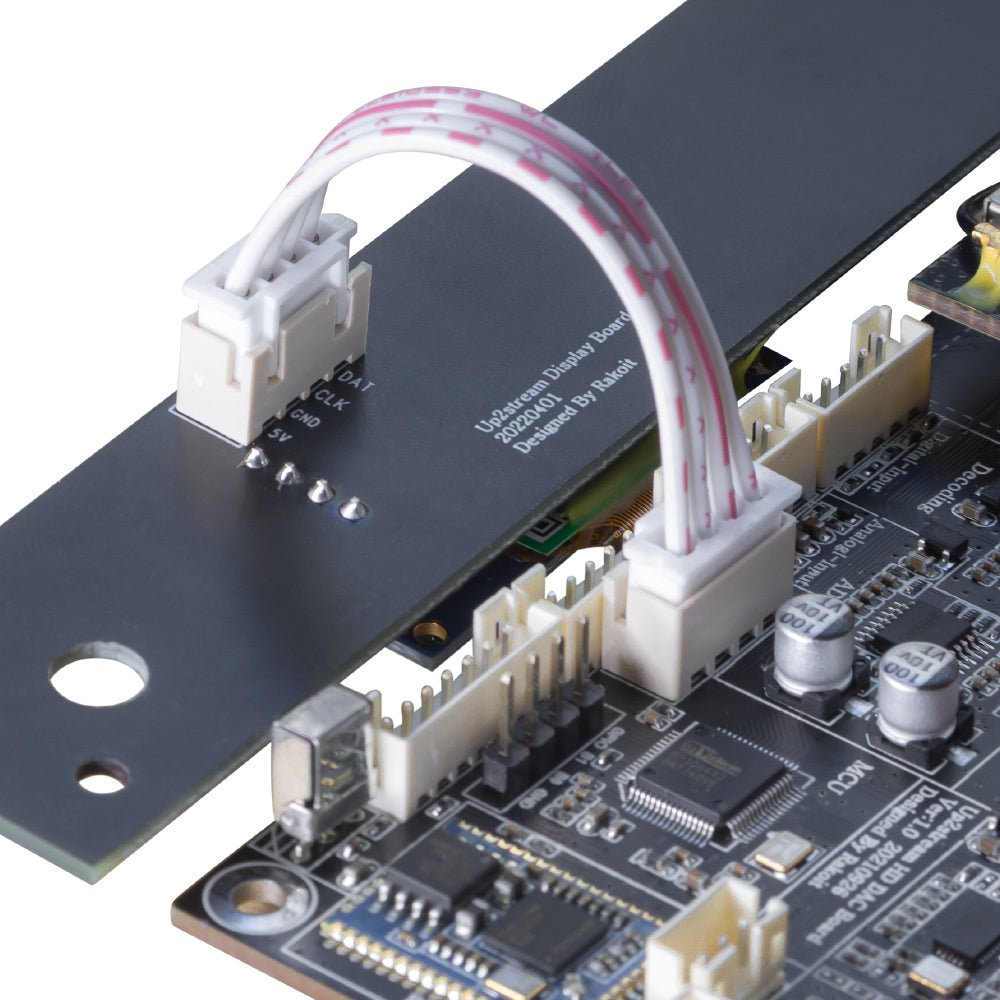

PIN OUT

PH2.0, DAT, CLK, GND, 5V

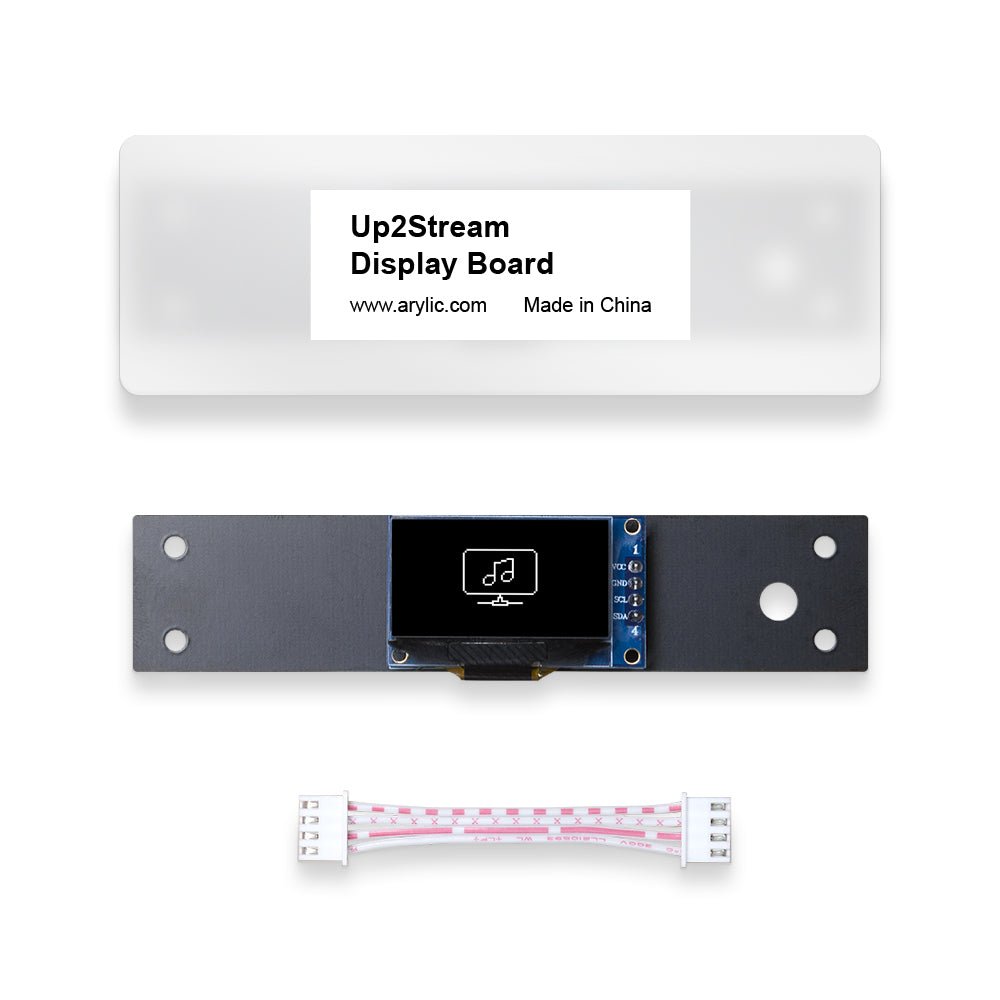

PACKAGE INCLUDES

Up2stream Display Board, 4 Pin PH2.0 Connector Cable

Customer Reviews

Based on 14 reviews
71%
(10)
29%
(4)
0%
(0)
0%
(0)
0%
(0)
W
Wojciech Ziabek
UP2 Stream DAC

Very good product, sound way better than other for similar price. I like options for expansions. Need a good linear power
supply and grounding. On the other hand, in my case, only RCA and Bluetooth work. Toslink and Digital connects are dead! Remote switches system off but system comes back by itself. Yuo don't need remote. App does the job. Keep your proof of purchase for replacment. Unfortunately I destroyed my.

M
Michael
HD DAC, great sound quality, documentation and accessory's: room for improving

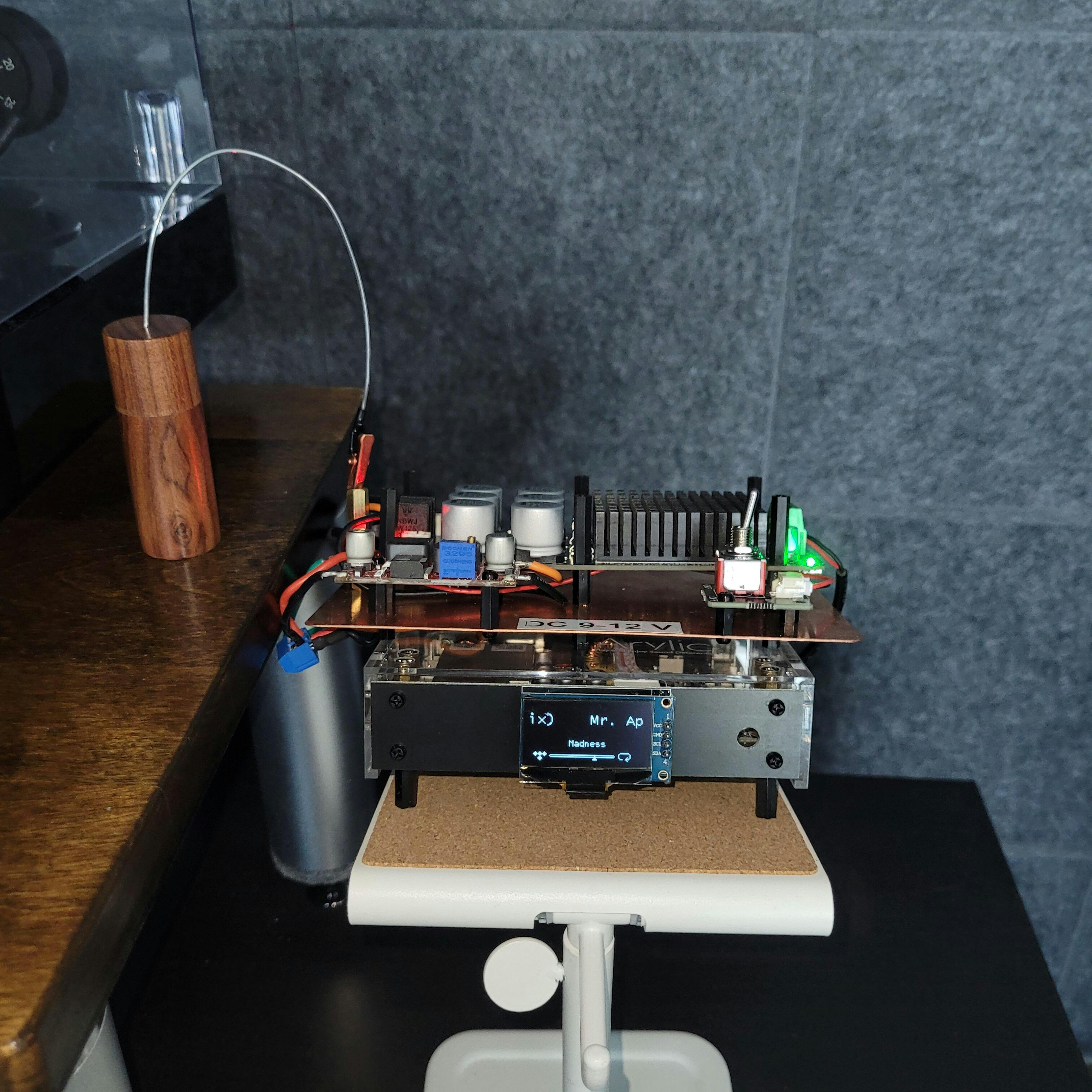

I was baffled when I hooked up the HD DAC to my Hifi setup. The sound quality from the analog output is stunning. The DAC is easy to use and the app is great ( I use it for my 3 channel boards from arylic, too.) The dedicated display is easy to connect and works great.
Now to the possible improvements: if you want to hook up a button board or a digital input or any other board for the older boards, you are on your own. There is one thread in the forum where you find information, that's it. The good news: when you find out how to hook up things, it works great. By the way: you need JST ph connectors for the HD board. @ arylic: please provide documentation how to connect things, even better: sell ready made cables with connectors for this purpose. 3d models for all your boards or at least a drawing for the HD DAC would be a dire need.
So, all in all: the five stars are for the great sound quality and the well working app.
For documentation it's one and a half star.

C
Chad S
Happy with Product Orders - Customer Support - lackluster

So far, everything we've ordered has worked well and we've been quite happy with the product. The only concern I have for Arylic surrounds their retail consumer support. I get pretty good responsiveness from my inside, wholesale account manager, but when trying to reach customer support to handle questions or issues through the customer support department, they are unresponsive. In fact, over the last 6 weeks, I've submitted 2 questions and have not received any reply. This concern for how consumers will be treated if they need help is my only reason for not giving a 5 star rating. The products are rock solid and the operating system is extremely intuitive, simple to set up and use.

E
Ernesto Arzac
DAC

Expedited shipping and great quality items.
Thanks

J
Jürgen Wiedl
Up2StreamHD

Works well, nice sound, good App!

M
M. Guerrero

Alles sehr gut verlaufen. Ich bin mit der Lieferung und Platinen sehr zufrieden. Danke.
