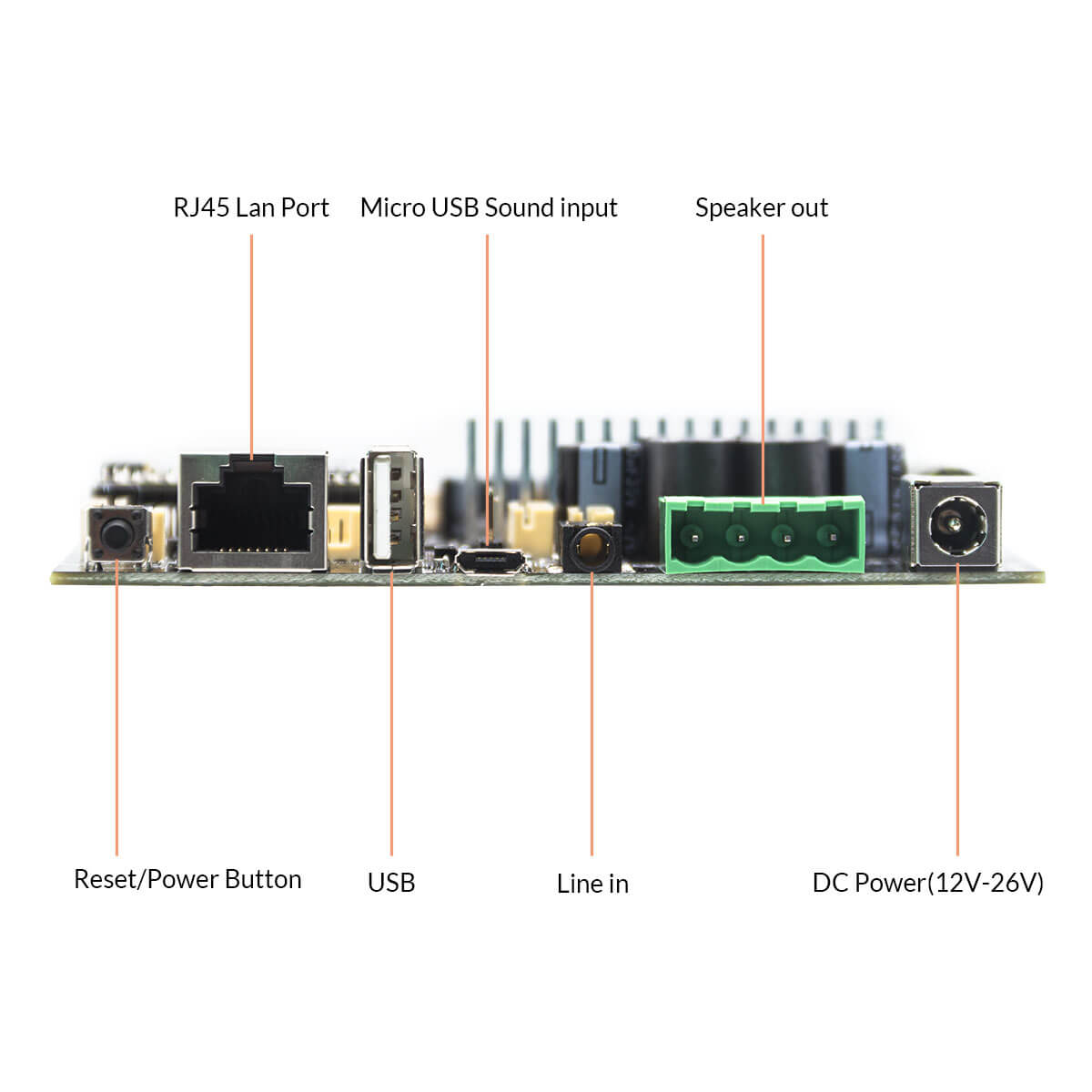

interface of mono amplifier

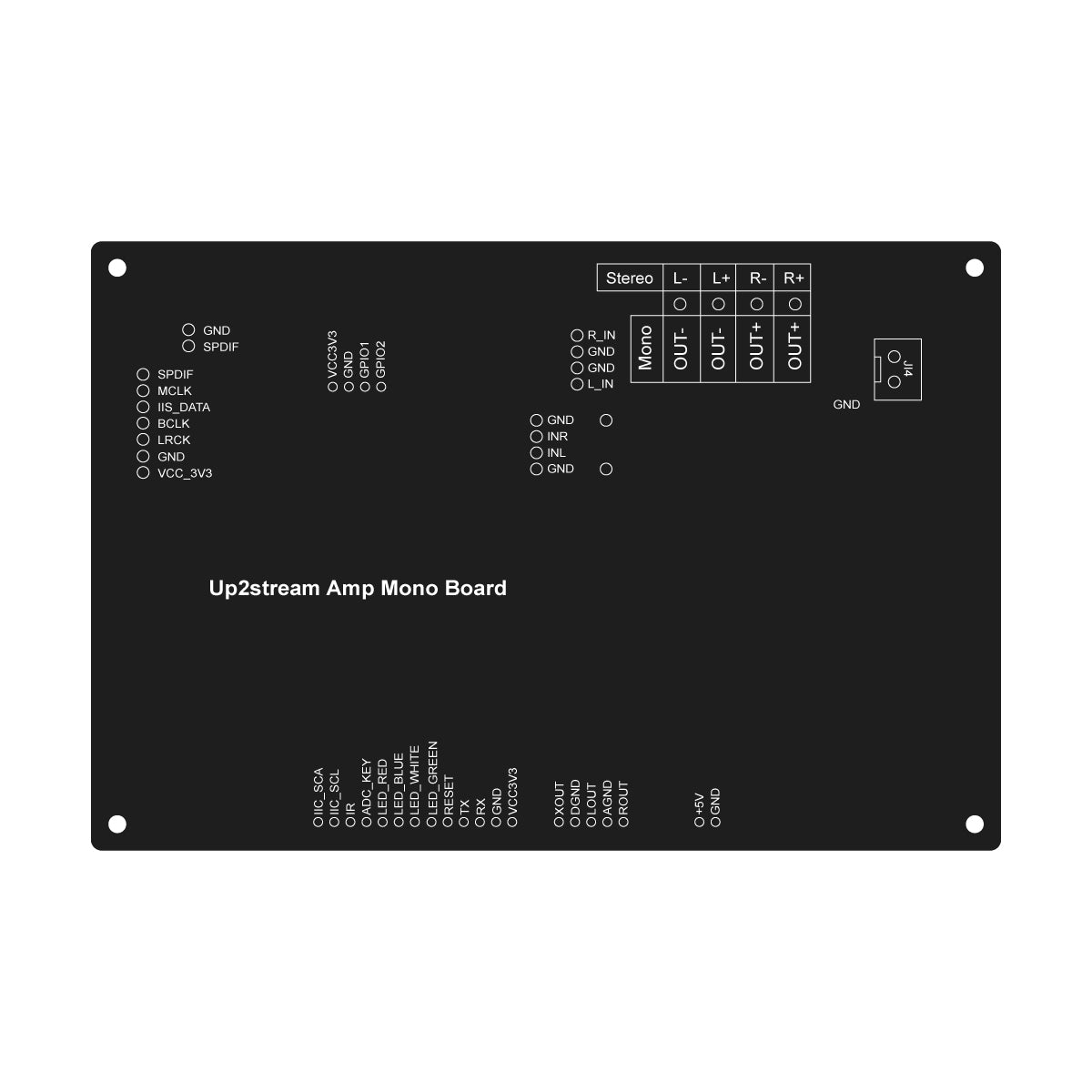

diagram of mono amplifier
connection of mono amplifier
mono amplifier with multiroom control

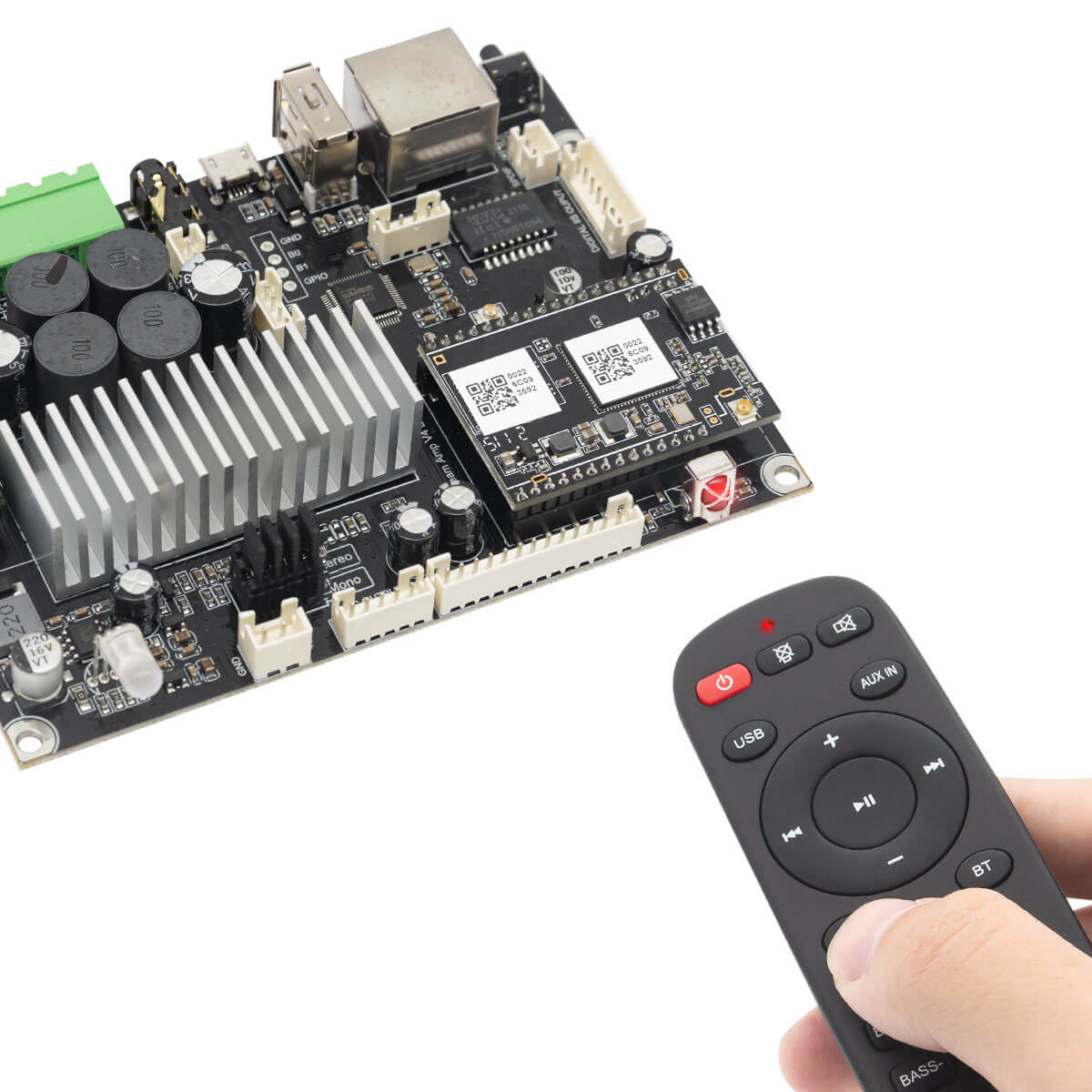

mono amplifier with remote control
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono
Mono Amplifier for DIY Up2Stream Amp Mono

Mono Amplifier for DIY Up2Stream Amp Mono

5 reviews

Regular price $119.00 Sale price $99.00
/
-50 in stock
Delivers worldwide from Asia, US, EU, & RU
See shipping options for details



  • 1 Year Warranty
  • 14 Days Return
  • Free Shipping
  • EU/US/RU Warehouse
  • 24/7 Online Chat Support

paymentmethods
  • DESCRIPTION
  • SPEC
  • Q & A
  • REVIEWS

Wireless Your Mono speaker

Wireless Your Mono speaker

More Powerful! 100 Watts Mono Amplifier

More Powerful! 100 Watts Mono Amplifier

Are you working in a project in some area, commercial buildings, elevators or DIY projects that only need one speaker but with high amplification? Our Mono Amplifier can get the job done! It can output a maximum 100W in Mono channel which is perfect for such situation.

  • High Power Stereo System

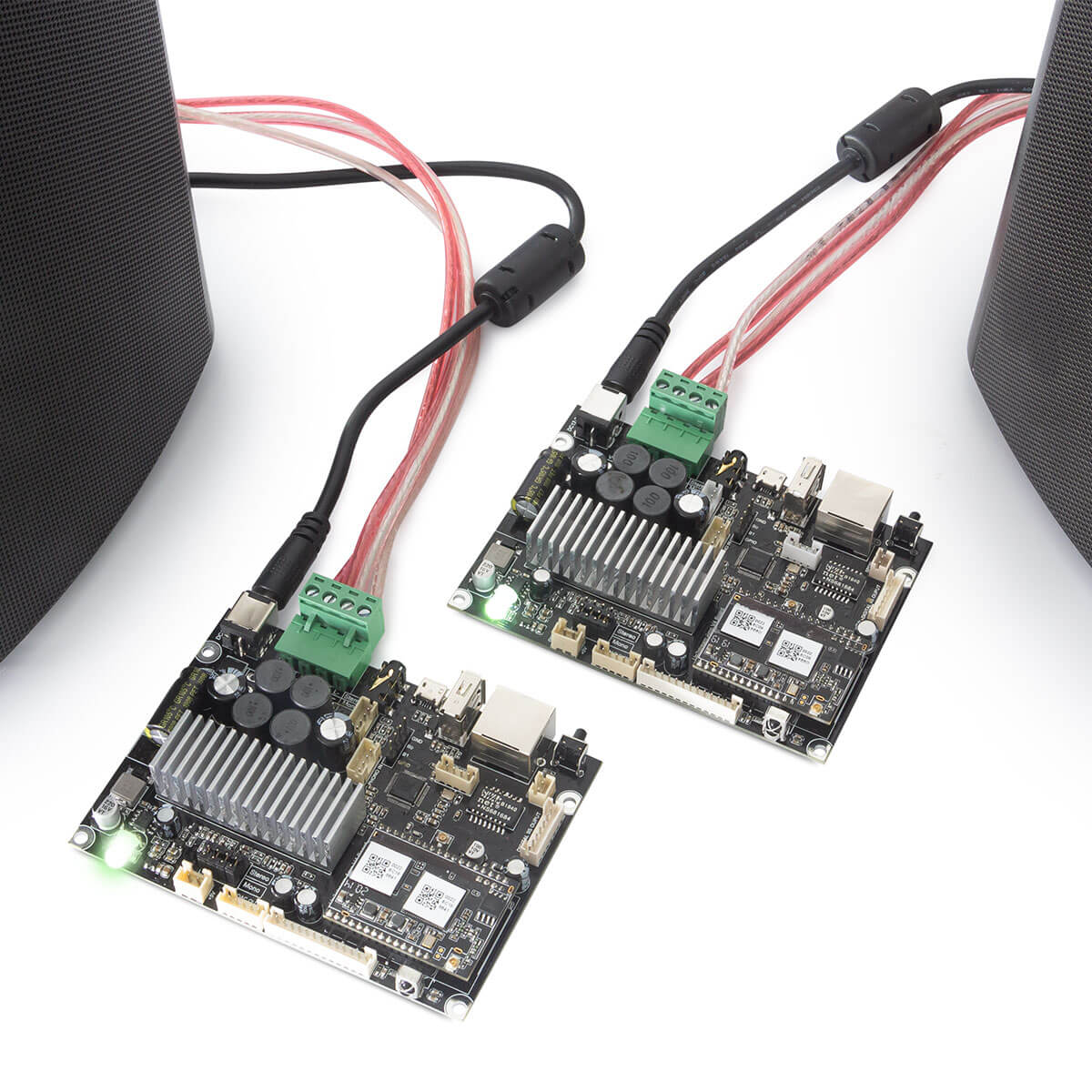

    You can combine 2 AMP Mono to form a stereo system with 200W power in total. It is also very easy to setup. Just 2 steps and you can enjoy your music with high power stereo system.

  • More Extension

    There are both Digital output (I2S) and Analog output (DAC) for you DIYers to be able to connect other amplifiers to extend the music power.

  • PC support and Tuning Tool

    Supports connection to PC through micro USB to act as external DAC, also you can use our ACPWorkbench to customize the different frequency and equalizer settings for your favorite music.

  • Whole House Party System

    With a little tweak you can pair AMP Mono with a stereo amplifier to become a 2.1 channel amplifier, put multiple devices in rooms of your house and you are ready to host a enjoyable and fun house party!

Stream All Music you Like

Stream your favorite online music such as Spotify, Amazon Music(US Only), Tidal, Deezer, Qobuz, Internet Radio, iheartRadio, Napster etc. Any time anywhere in your house with our 4stream App.

What's More





Specification

USER INTERFACE & CONTROLS


LED indicators
White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Green-Line in mode
Red-USB mode
Yellow-connect to PC
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on
PC
iTunes/Musicbee/Foobar 2000
4stream App
Free iOS and Android App

AUDIO


Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio Decode
Up to 24bit/192kHz
Audio Output
44.1khz/16bits, CD quality
Frequency Response
20Hz-20kHz
THD+N
<0.03% @1kHz/1W/4ohm
SNR
91dB
Speaker Impedance
Stereo 4-8Ω
Mono 2-8Ω
Speaker Power
Stereo Mode
2×50-W into a 4-Ω BTL Load at 21V
2×15-W into a 8-Ω BTL Load at 15V
2x15W@8Ω + 30W@4Ω m BLT load at 15V
Mono Mode
100-W into a 2-Ω BTL Load at 24V
60-W into a 4-Ω BTL Load at 21V
30-W into a 8-Ω BTL Load at 18V
Online Music Service
Check here
Local Storage
Mobile device memory, NAS, USB pen drive/Stick

GENERAL


Weight
0.5kg
Dimensions
110*80*22mm
Working temperature
0~40℃

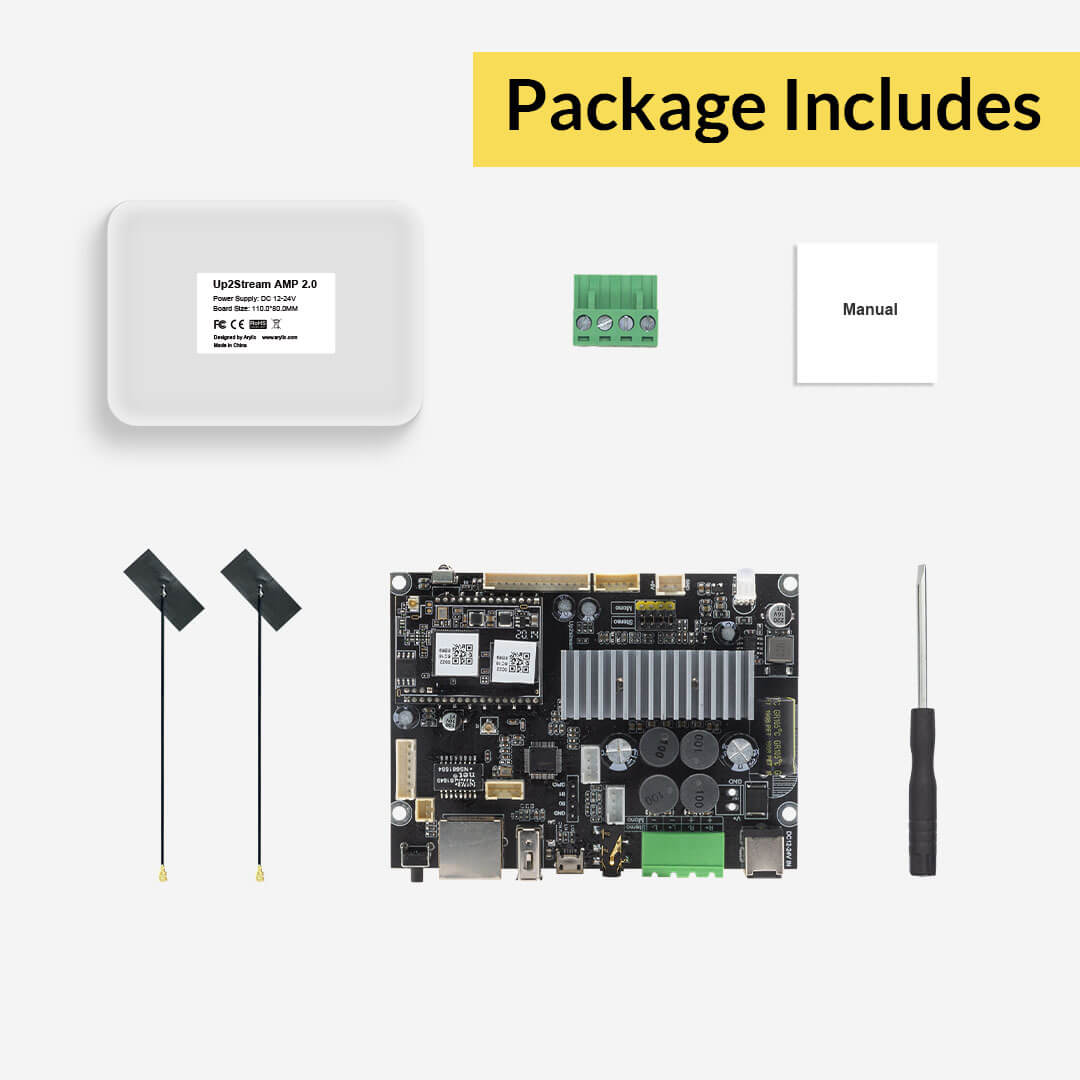

Package Included
Main board x1
Antenna x2
User's manual x1
Screw Driver x1
4pin Phoenix Connector x1

CONNECTIVITY


Wifi
IEEE 802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 10M
Wired Connection
Ethernet RJ45
Streaming Protocols
AirPlay, DLNA, UPnP, Spotify connect, Qplay

INTERFACES


DC input
12V-24V
Audio input
3.5mm mini jack(1Vrms)
Line in(pin)
Micro USB Input x1 for PC streaming
Audio output
Speaker out (Pin space 5.0mm)
Analog Stereo(pin)
Analog Mono(pin)
Spdif out (PIN)
USB Host
For USB pen drive/stick, 1000 songs limited
Antennas
WiFi/Bluetooth Signal
Compatible Expansion Board
ADC-KEY Board
SPDIF Input Board
SPDIF Output Board
Volume knob Board
IR Extension Board
(need to use with ADC-key board)




Specification

USER INTERFACE & CONTROLS


LED indicators
White-WiFi & network mode:
Flashing fast-device is booting
Flashing slow- waiting for WiFi connection
Green-Line in mode
Red-USB mode
Yellow-connect to PC
Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on
PC
iTunes/Musicbee/Foobar 2000
4stream App
Free iOS and Android App

Power Button
Device on:
Short press once: Switch input mode
Long press once: Switch off
Short press twice: Disconnect current WiFi connection and enter paring mode (WiFi mode)
Short press three times: Restore the factory settings

Device off:
Short press: Switch on
PC
iTunes/Musicbee/Foobar 2000
4stream App
Free iOS and Android App

AUDIO


Music Format
FLAC/MP3/AAC/AAC+/ALAC/APE/WAV
Audio Decode
Up to 24bit/192kHz
Audio Output
44.1khz/16bits, CD quality
Frequency Response
20Hz-20kHz
THD+N
<0.03% @1kHz/1W/4ohm
SNR
91dB
Speaker Impedance
Stereo 4-8Ω
Mono 2-8Ω
Speaker Power
Stereo Mode
2×50-W into a 4-Ω BTL Load at 21V
2×15-W into a 8-Ω BTL Load at 15V
2x15W@8Ω + 30W@4Ω m BLT load at 15V
Mono Mode
100-W into a 2-Ω BTL Load at 24V
60-W into a 4-Ω BTL Load at 21V
30-W into a 8-Ω BTL Load at 18V
Online Music Service
Check here
Local Storage
Mobile device memory, NAS, USB pen drive/Stick

GENERAL


Weight
0.5kg
Dimensions
110*80*22mm
Working temperature
0~40℃
Package Included
Main board x1
Antenna x2
User's manual x1
Screw Driver x1
4pin Phoenix Connector x1

CONNECTIVITY


Wifi
IEEE 802.11 b/g/n 2.4G
Bluetooth
5.0 SBC/AAC, 10M
Wired Connection
Ethernet RJ45
Streaming Protocols
AirPlay, DLNA, UPnP, Spotify connect, Qplay

INTERFACES


DC input
12V-24V
Audio input
3.5mm mini jack(1Vrms)
Line in(pin)
Micro USB Input x1 for PC streaming
Audio output
Speaker out (Pin space 5.0mm)
Analog Stereo(pin)
Analog Mono(pin)
Spdif out (PIN)
USB Host
For USB pen drive/stick, 1000 songs limited
Antennas
WiFi/Bluetooth Signal
Compatible Expansion Board
ADC-KEY Board
SPDIF Input Board
SPDIF Output Board
Volume knob Board
IR Extension Board
(need to use with ADC-key board)
Want to get a 30 to 50% discount on this item?
Why Not! Just write a review and let us know after your purchase.

To Know More here.

QUESTIONS & ANSWERS

Ask a Question
  • Since a couple of days I have a problem with synchronized play. I have 2 Mono Amps, with the latest beta software. When playing synchronized, the amp which acts as a slave after a while begins to malfunction, sound the slave unit stops playing, then starts playing (faltering). If I change the master/slave situation then again the (new) slave has the problem
    Please update your both devices to the newest firmware and use the newest app.
    You can follow the instructions below:
    https://forum.arylic.com/t/new-4stream-app-and-firmware-upgrade-4-6-328252/890
  • Salve, devo ristrutturare casa e vorrei realizzare un sistema multi-room: - stanza da letto con 2 altoparlanti passivi da 50W non collegati tra loro - cucina con 2 altoparlanti passivi da 30W non collegati tra loro - soggiorno 2 altoparlanti passivi da 100W non collegati tra loro I diffusori sono collegati alla rete di alimentazione, quale prodotto mi consigliate? Grazie
    Grazie per le informazioni.
    Per la camera da letto, puoi scegliere Up2stream Amp V4 o A50+.
    Per la cucina puoi scegliere Up2stream Amp V4 o A30+.
    Per il soggiorno puoi scegliere 2*Up2stream Amp mono per ottenere 100W per ogni canale.
    Puoi scegliere prodotti fai da te se vuoi risparmiare il budget, potresti aver bisogno di alcuni accessori qui per i prodotti fai da te.
  • I have an unusual situation. I want to site 2 classic hi-fi speakers either side of a big stone feature and it is impossible to run a cable between them or a cable back to a single pre-amp. Both positions do have mains power. Can you propose a system using your products to solve the problem? I’m imagining a wireless connection to both speakers that works in stereo. Thank you
    By this, I advice your can have a Up2stream Mini V3 receiver board to each speakers then group in our app.
    After setup, set one as left channel then set another as right channel in the app.
  • Can I connect the Volume knob board to the encoder plug on the mono board and control volume that way?
    Yes, you can connect encoder volume knob to the (GPIO1 GPIO2 GND  ...) JACK
  • Can you stream one bluetooth or line input to multiple AMP monos simultaneously? Does it have delay?
    Hello
            you can achieve the goal  through  multi room  mode, you  stream Bluetooth  or line in to the master device, and the  slave device  will get the streamer from  the master one, because the data transfer through  wireless  so  the  delay  depends on the transfer delay
  • Supply how much, V + - and watts if the device >mono amplifier< is only used as a source for the SPDIF module >SPDIF Out Board
    SPDIF OUT Board  don't need supply  on amp mono
  • I'm wondering what is the power in mono mode 26 V / 6 A in 8 ohms ???
    about 60 watts
  • What is the difference between Up2Stream Amp Mono and Up2Stream Amp V4. Apparently there is no difference.
    it's same board but controller by a swtich to change mono and stereo.
  • If we set up two different devices as left and right channel, how will this appear in Spotify Connect? Will it appear as a single device that I can choose? Thank you
    hello, you can make use of multiroom mode to achieve your idea, in this case, you only need to stream music to the master device ,so in spotify, you only need to select master device to play music
  • Hello, It seems there is an IIC connector. Is it possible to drive the AMP mono board with arduino for on/off, volume, previous/next,led functions...?
    the i2c connecter is reserved for the display expansion board
  • Hello, Is it possible to define the BT name of the board?
    the bt name of the board is same as your device name, you can define your device name by  4STREAM APP
  • Hello, Is a APTX BT?
    sorry, this  type of  board dosen't support aptx
  • Hello. How do you switch on/off the Amp mono?
    you can use the ir remote, and you also can use the stand by button to let it deep sleep
  • Is it possible to get a chassis to put the board in?
    you can refer to this page https://www.arylic.com/products/up2stream-case
  • How do you use two mono amplifiers in a stereo set-up? And is it real left/right stereo?
    You can set up two different devices as left and right channel outputs by grouping multiple rooms
  • blutooth and dac chip type?
    both are MVbp1064
  • How is volume controlled in up2stream mono amp ?
    Same as stereo .by IR,remote controller or app .





●It is extendable by expansion boards.

*5G WiFi compatiable means users could control our system when your smartphone connected to your router's 5G channel.

* About Spidif Pins, Up2stream Mini/Pro is default as Spdif out. Up2stream Amp/Mono is default as Spdif in. You can switch to Spdif In/Out by ACPWorkbench Tool. The 2 spdif pins are the same funtion, can't change seperately.

*Up2stream Amp SUB and S50 Pro+ Preamp is our coming up new products.

Software Comparison

Accessories Compatible

Customer Reviews
5.0 Based on 5 Reviews
Write a Review

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

Filter Reviews:
ZV
09/02/2021
Zoran V.
Serbia Serbia
DIY Wifi Speakers

I have purchased these amps in order to turn my old passive Pioneer speakers into Wifi speakers. With on-off-on switch I managed to create double input on speakers so now they can be used as before connected to my old amp or as a Wifi speakers connected to Up2Stream amp. I have also added battery power and turned them to completely wireless speakers when used with Up2Stream amps.

D
05/23/2021
D***e
RU RU

Ordered 3 amplifiers, one of them came with a defect, did not work the power button. The seller sent a similar amplifier at his own expense. I checked everything, everything works well! Seller recommend! The only nuance, this is a large power supply, twice as much as the amplifier itself. Before Khabarovsk, the parcel came in 12 days

S
03/25/2021
S***h
RU RU

A good device, but when used in a pair of two boards, there is a surround effect.

JJ
01/15/2021
Jessika J.

very good seller I recive very fast shipment thanks

TM
01/02/2021
Timmy M.

very fast shipping. Only 13 days from China to Germany! I waited for this mono board a couple of months. Now it is finally available. I think it is the best board you can buy if you have a mono or stereo system. It offers WIFI BT for wireless inputs and USB Ethernet AUX for wired input. I recommend to order the board with Remotecontrol. the Remotecontrol offers also a lot of options. My faviourite one is the deep bass function. with that the bass gets enhanced very good. Moreover if you buy the ACPWorkbench Software from Arylic you can apply some effects and you can set some EQ parameters. Very good Job Arylic!!!
